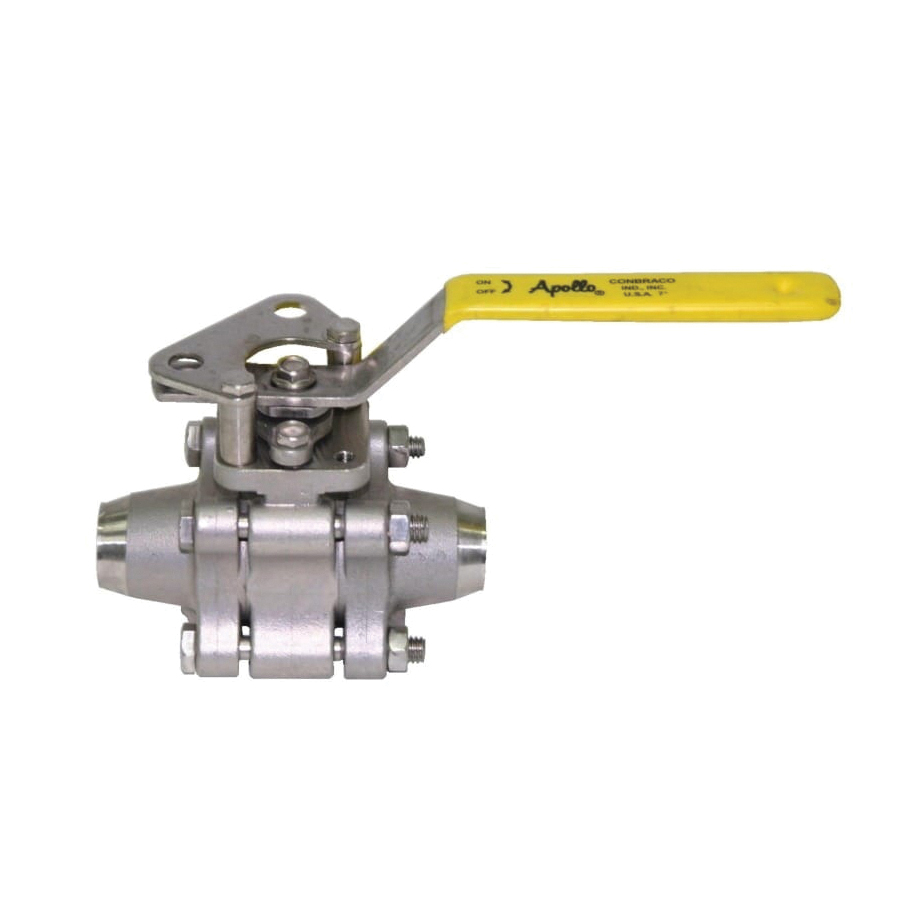

Apollo™ 86B-504-01 86B-500 3-Piece Ball Valve With Enclosed Fasteners, 3/4 in Nominal, Butt Weld End Style, 600 lb, Stainless Steel Body, Full Port, PTFE Softgoods, Domestic
CBPN:246475
UPC:670750089268
MPN:86B50401
Price:
$542.83 / EA
Prop 65:
Enter in multiples of 6
DESCRIPTION
Apollo™ 86B50401, Ball Valve, 3-Piece, Series: 86B-500, 3/4 in Nominal, Butt Welded End Style, 1500 psi CWP Pressure, 600 lb Pressure Class, Full Port, Lever Handle Actuator, 316 Stainless Steel Ball, 4.66 in Inlet to Outlet Length, 3.4 in Top to Inlet Center, Stainless Steel Body, PTFE Softgoods, Domestic
Apollo™ 86B-504-01 86B-500 3-Piece Ball Valve With Enclosed Fasteners, 3/4 in Nominal, Butt Weld End Style, 600 lb, Stainless Steel Body, Full Port, PTFE Softgoods, Domestic
CBPN:246475
MPN:86B50401
UPC:670750089268
Price:
$542.83 / EA
Prop 65:
Enter in multiples of 6
DESCRIPTION
Apollo™ 86B50401, Ball Valve, 3-Piece, Series: 86B-500, 3/4 in Nominal, Butt Welded End Style, 1500 psi CWP Pressure, 600 lb Pressure Class, Full Port, Lever Handle Actuator, 316 Stainless Steel Ball, 4.66 in Inlet to Outlet Length, 3.4 in Top to Inlet Center, Stainless Steel Body, PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 4 lbs
Nominal Size: 3/4 in
End Style: Butt Welded
Pressure Class: 600 lb
Pressure Rating: 1500 psi CWP
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Handle
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4.66 in
Manufacturer Name: Apollo Conbraco
Series: 86B-500
Top to Inlet Center: 3.4 in
Trim Material: Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Application: Industrial Application
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME B16.34/B16.25 | ASTM A276 Ball | ASTM A351 CF8M Body | API 608 | CE Listed | CGA 3.16-M88 (2014) | NACE MR0175 (2000)/MR0103 (2012) | PROP65: Cancer and Reproductive Harm
Item Features
- Swing out center section
- Pressure balanced solid ball
- Compression controlled spiral wound gaskets
- Anti-blowout one piece bottom entry stem
- Statically grounded ball, stem and body
- Two-position locking
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
