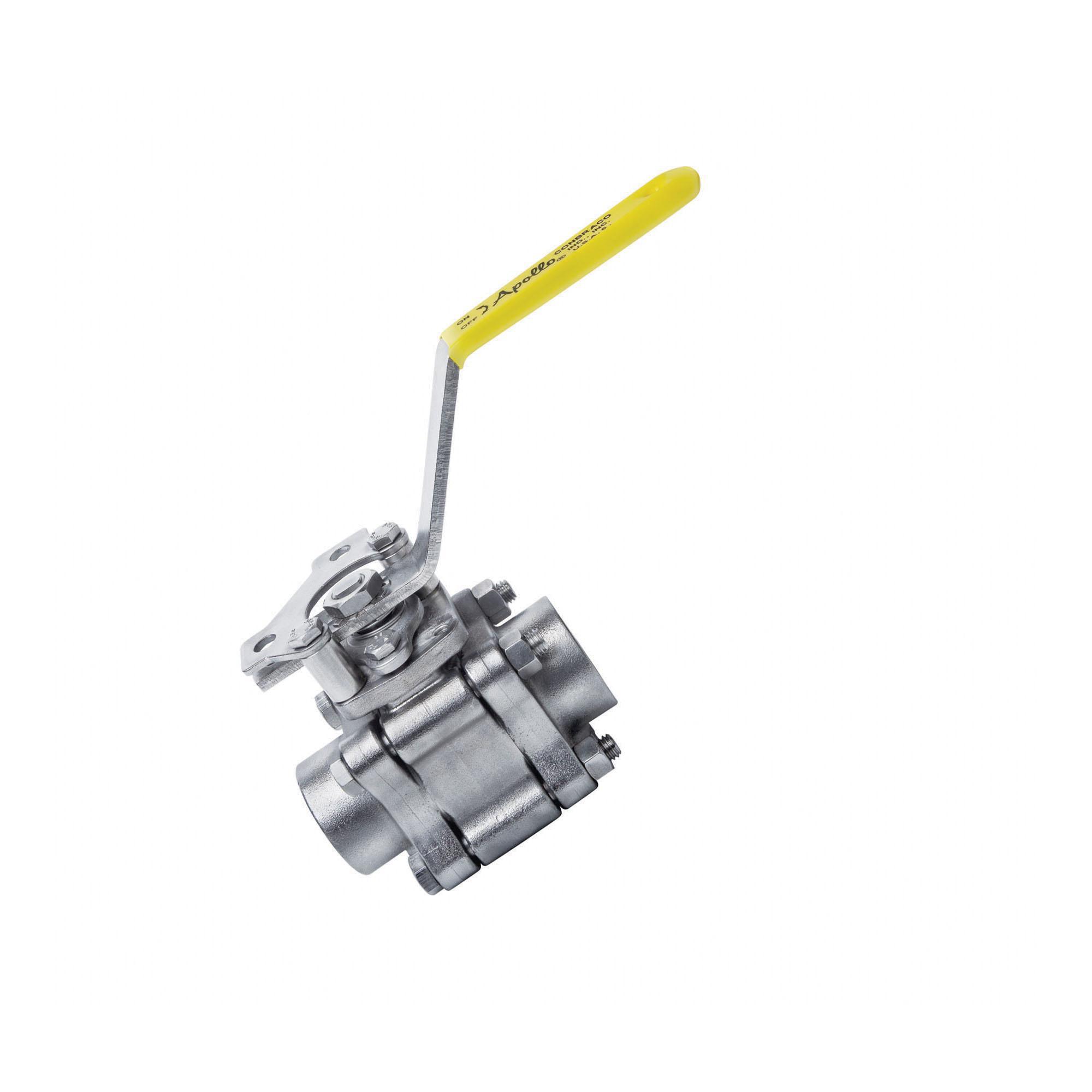

Apollo™ 86A10301 86A-100 3-Piece Ball Valve, 1/2 in Nominal, NPT End Style, Stainless Steel Body, Full Port, PTFE/RPTFE Softgoods, Domestic
CBPN:1535
UPC:670750059827
MPN:86A-103-01
Price:
$317.63 / EA
Prop 65:
DESCRIPTION
Apollo™ 86A10301, Ball Valve, 3-Piece, Series: 86A-100, 1/2 in Nominal, NPT End Style, 1500 psi CWP Pressure, -50 to 500 deg F, Full Port, Media: Water, 1/2 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, Stainless Steel Body, PTFE/RPTFE Softgoods, Domestic
Apollo™ 86A10301 86A-100 3-Piece Ball Valve, 1/2 in Nominal, NPT End Style, Stainless Steel Body, Full Port, PTFE/RPTFE Softgoods, Domestic
CBPN:1535
MPN:86A-103-01
UPC:670750059827
Price:
$317.63 / EA
Prop 65:
DESCRIPTION
Apollo™ 86A10301, Ball Valve, 3-Piece, Series: 86A-100, 1/2 in Nominal, NPT End Style, 1500 psi CWP Pressure, -50 to 500 deg F, Full Port, Media: Water, 1/2 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, Stainless Steel Body, PTFE/RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 2.3 lbs
Nominal Size: 1/2 in
End Style: NPT
Pressure Rating: 1500 psi CWP
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE/RPTFE
Actuator Type: Lever Handle
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 2.8 in
Manufacturer Name: Apollo Conbraco
Media: Water
Orifice Size: 1/2 in
Series: 86A-100
Temperature Rating: -50 to 500 deg F
Top to Inlet Center: 3.02 in
Trim Material: Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A351 CF8M Valve Body | ASTM A276 316SS Ball/Stem | MSS SP-110 | NACE MR0175 (2000)/MR0103 (2012) | NPT Per ASME B1.20.1 | MSS SP-25 | PROP65: Cancer and Reproductive Harm
Item Features
- Stainless steel trim and hardware
- Swing out center section
- Pressure balanced solid ball
- Compression controlled RPTFE gaskets
- Anti-blowout one piece bottom entry stem
- 2-position locking device
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
- Multi-seal seat
- 18-8 stainless steel body nut/bolt/stop bolt/gland bolt
- 300 Series stainless steel handle nut/screw
- 300 Series stainless steel gland plate/lever handle/lock plate/stops
- 150 psig steam
