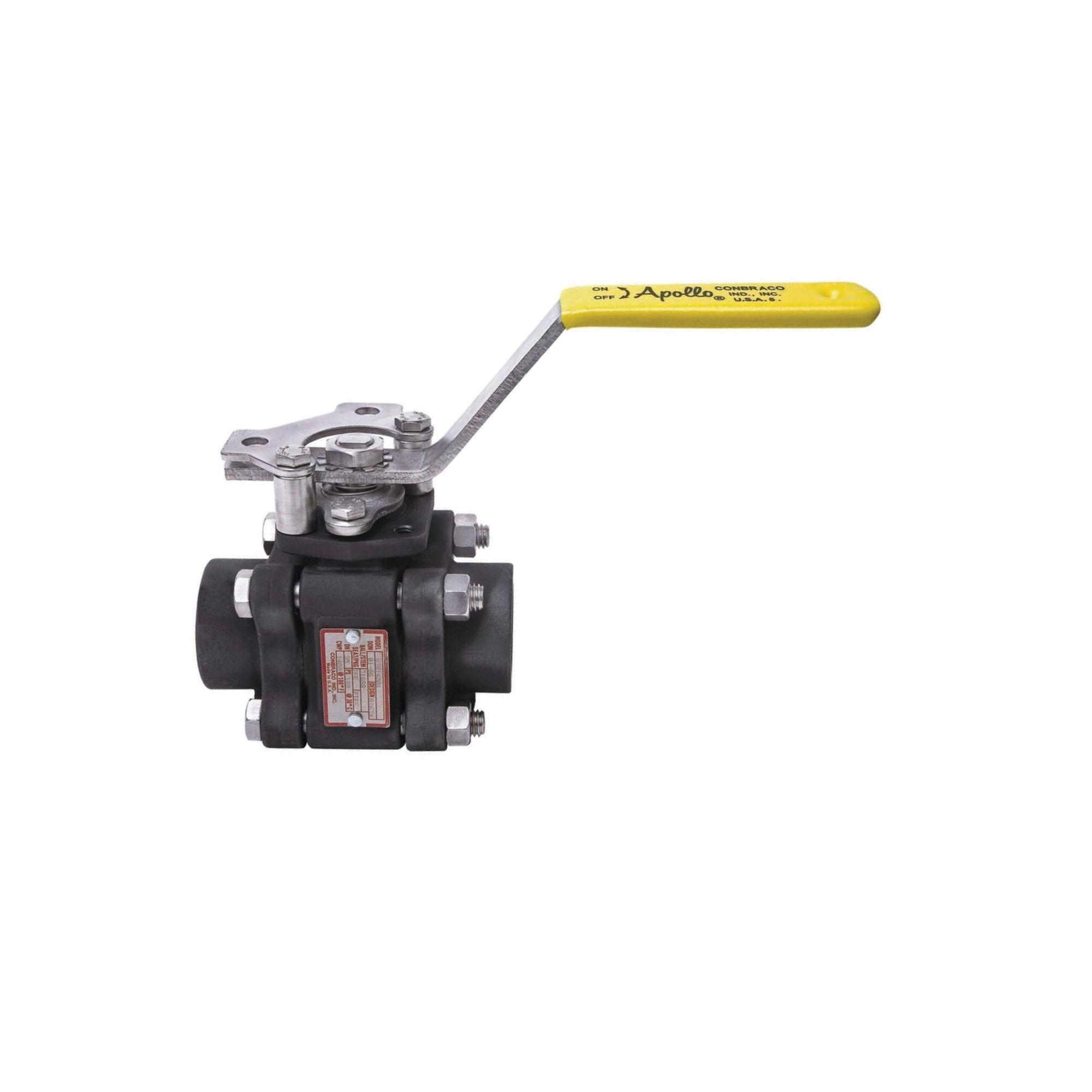

Apollo™ 83A14201 83A-140 3-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Carbon Steel Body, Full Port, PTFE Softgoods, Domestic
CBPN:143396
UPC:670750088452
MPN:83A-142-01
Price:
$155.90 / EA
Prop 65:
DESCRIPTION
Apollo™ 83A14201, Ball Valve, 3-Piece, Series: 83A-140, 3/8 in Nominal, FNPT End Style, 1500 psi CWP Pressure, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
Apollo™ 83A14201 83A-140 3-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Carbon Steel Body, Full Port, PTFE Softgoods, Domestic
CBPN:143396
MPN:83A-142-01
UPC:670750088452
Price:
$155.90 / EA
Prop 65:
DESCRIPTION
Apollo™ 83A14201, Ball Valve, 3-Piece, Series: 83A-140, 3/8 in Nominal, FNPT End Style, 1500 psi CWP Pressure, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 2.3 lbs
Nominal Size: 3/8 in
End Style: FNPT
Pressure Rating: 1500 psi CWP
Body Material: Carbon Steel
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 2.8 in
Manufacturer Name: Apollo Conbraco
Series: 83A-140
Top to Inlet Center: 3.02 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A216 WCB Body | ASTM A276 Ball/Stem | ASME B16.11 | MSS SP-110/MSS SP-25 | MR0103 (2012) | NACE MR0175 (2000) | PROP65: Cancer and Reproductive Harm
Item Features
- Stainless steel trim and hardware
- Swing out center section
- Pressure balanced solid ball
- Compression controlled RPTFE gaskets
- Anti-blowout one piece bottom entry stem
- Two-position locking device
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
- 150 psig saturated steam
