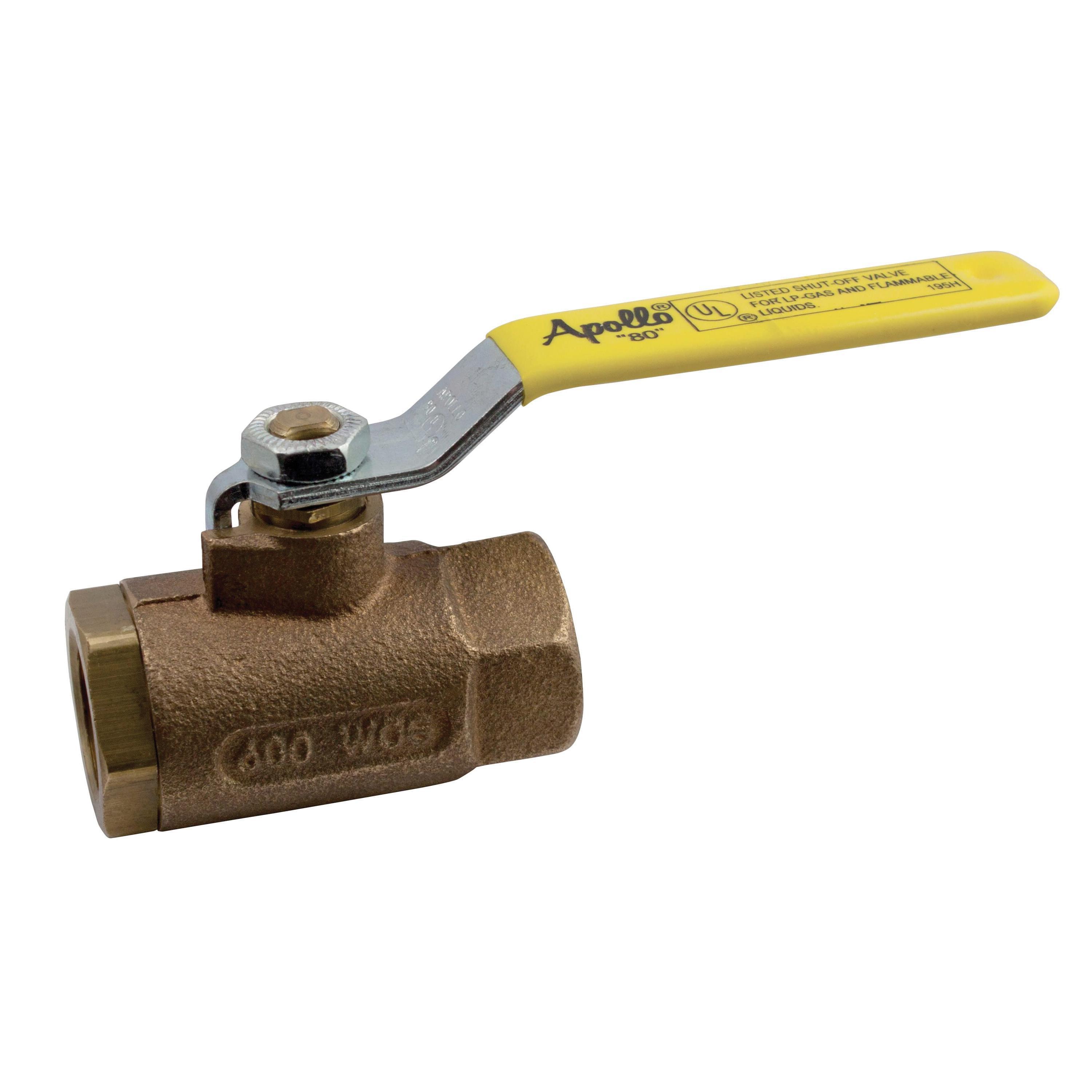

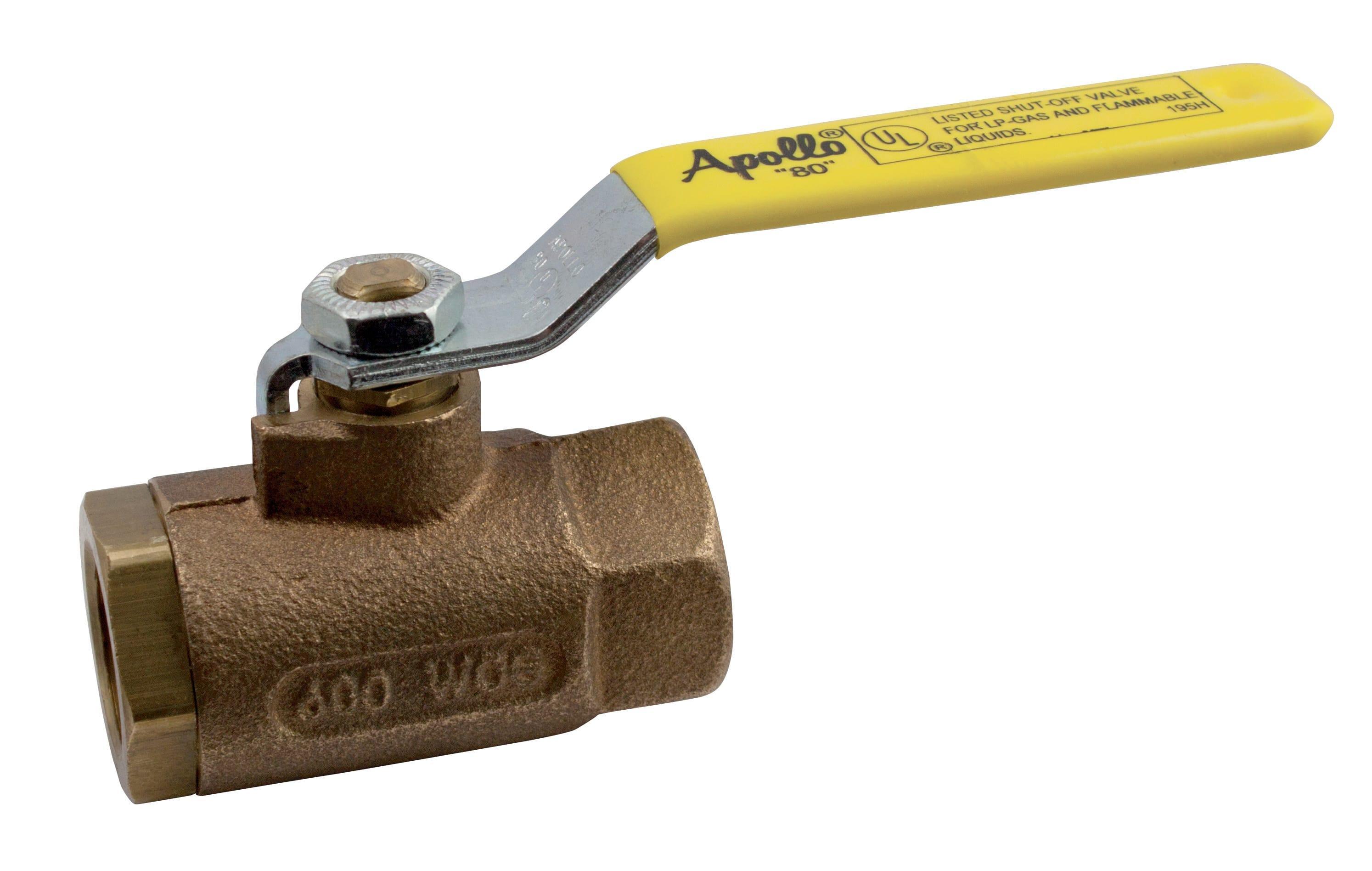

Apollo™ 8010101 80-100 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, RPTFE Softgoods, Domestic
CBPN:67626
UPC:670750719097
MPN:80-101-01
Price:
$41.62 / EA
Prop 65:
DESCRIPTION
Apollo™ 8010101, Ball Valve, 2-Piece, Series: 80-100, 1/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, Standard Port, Media: Gas/Water, 0.37 in Orifice, Lever Operated Actuator, 2.06 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, RPTFE Softgoods, Domestic
The Apollo™ 80 series bronze ball valve is UL Listed and designed as a safe shut-off valve for LP gas, natural gas, flammable liquids and heated oil.
Apollo™ 8010101 80-100 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, RPTFE Softgoods, Domestic
CBPN:67626
MPN:80-101-01
UPC:670750719097
Price:
$41.62 / EA
Prop 65:
DESCRIPTION
Apollo™ 8010101, Ball Valve, 2-Piece, Series: 80-100, 1/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, Standard Port, Media: Gas/Water, 0.37 in Orifice, Lever Operated Actuator, 2.06 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, RPTFE Softgoods, Domestic
The Apollo™ 80 series bronze ball valve is UL Listed and designed as a safe shut-off valve for LP gas, natural gas, flammable liquids and heated oil.
Specifications
Brand: Apollo™
Weight: 0.52 lbs
Nominal Size: 1/4 in
End Style: FNPT
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Standard
Softgoods Material: RPTFE
Actuator Type: Lever Operated
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 2.06 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 0.37 in
Series: 80-100
Top to Inlet Center: 1-3/4 in
Trim Material: Brass Stem and PTFE Seat
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584-C84400 Body | ASTM B16 Ball/Stem | CRN OC10908.5C | cULus Listed | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- 01 - Standard Configuration
- Blow-out proof stem
- Chromium plated ball
- Large ports to reduce pressure drop
- Vacuum service to 29 in Hg
- 150 psig saturated steam
- 250 psi LP gas
- Cold non-shock
