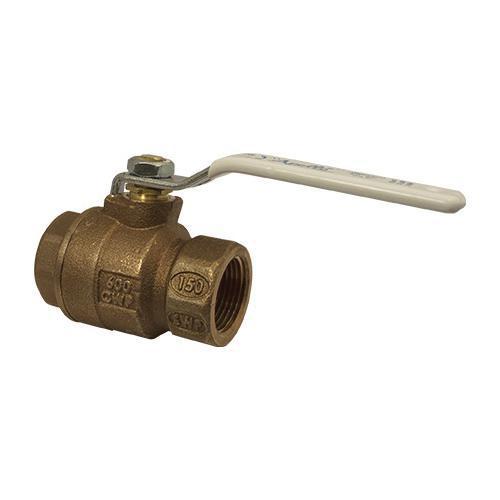

Apollo™ 77CLF14227A 77CLF-A 2-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Lead Free Bronze Body, Full Port, RPTFE Softgoods, Domestic
CBPN:247543
UPC:670750616105
MPN:77CLF-142-27-A
Price:
$86.02 / EA
Prop 65:
DESCRIPTION
Apollo™ 77CLF14227A, Ball Valve, 2-Piece, Series: 77CLF-A, 3/8 in Nominal, NPT End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, 3/8 in Orifice, Lever Operated Actuator, Chrome Plated Brass Ball, 1.86 in Inlet to Outlet Length, 1.65 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, RPTFE Softgoods, Domestic
The Apollo™ 77CLF Contractor Series Lead Free Ball Valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven EZ-Solder™ Lead Free materials.
Apollo™ 77CLF14227A 77CLF-A 2-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Lead Free Bronze Body, Full Port, RPTFE Softgoods, Domestic
CBPN:247543
MPN:77CLF-142-27-A
UPC:670750616105
Price:
$86.02 / EA
Prop 65:
DESCRIPTION
Apollo™ 77CLF14227A, Ball Valve, 2-Piece, Series: 77CLF-A, 3/8 in Nominal, NPT End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, 3/8 in Orifice, Lever Operated Actuator, Chrome Plated Brass Ball, 1.86 in Inlet to Outlet Length, 1.65 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, RPTFE Softgoods, Domestic
The Apollo™ 77CLF Contractor Series Lead Free Ball Valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven EZ-Solder™ Lead Free materials.
Specifications
Brand: Apollo™
Weight: 0.55 lbs
Nominal Size: 3/8 in
End Style: NPT
Pressure Rating: 600 psi CWP
Body Material: Lead Free Bronze
Port Type: Full
Softgoods Material: RPTFE
Actuator Type: Lever Operated
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 1.86 in
Manufacturer Name: Apollo Conbraco
Media: Water
Orifice Size: 3/8 in
Series: 77CLF-A
Temperature Rating: 450 deg F
Top to Inlet Center: 1.65 in
Trim Material: 316 Stainless Steel Stem and RPTFE Seat
Type: 2-Piece
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI 3rd Party Approval to 0.25 Percent Lead Max | ASTM B584-C89836 Lead-Free | CRN OC10908.5C | MSS SP-110 | NSF/ANSI 61 Water Quality | NSF/ANSI 372 Lead-Free | IAPMO R and T/UPC IGC Z1157 | City of Los Angeles DBS | PROP65: Cancer and Reproductive Harm
Item Features
- Easily identifiable white handle grip and blue Lead free hang tag
- EZ-Solder Lead free bronze body
- Blow-out proof stem
- Vacuum service to 29 in Hg
- Zinc plated steel nut
- UNS C27451 Lead free brass retainer
- Zinc plated steel/vinyl standard handle
- Standard trim
- 150 psi steam working pressure
