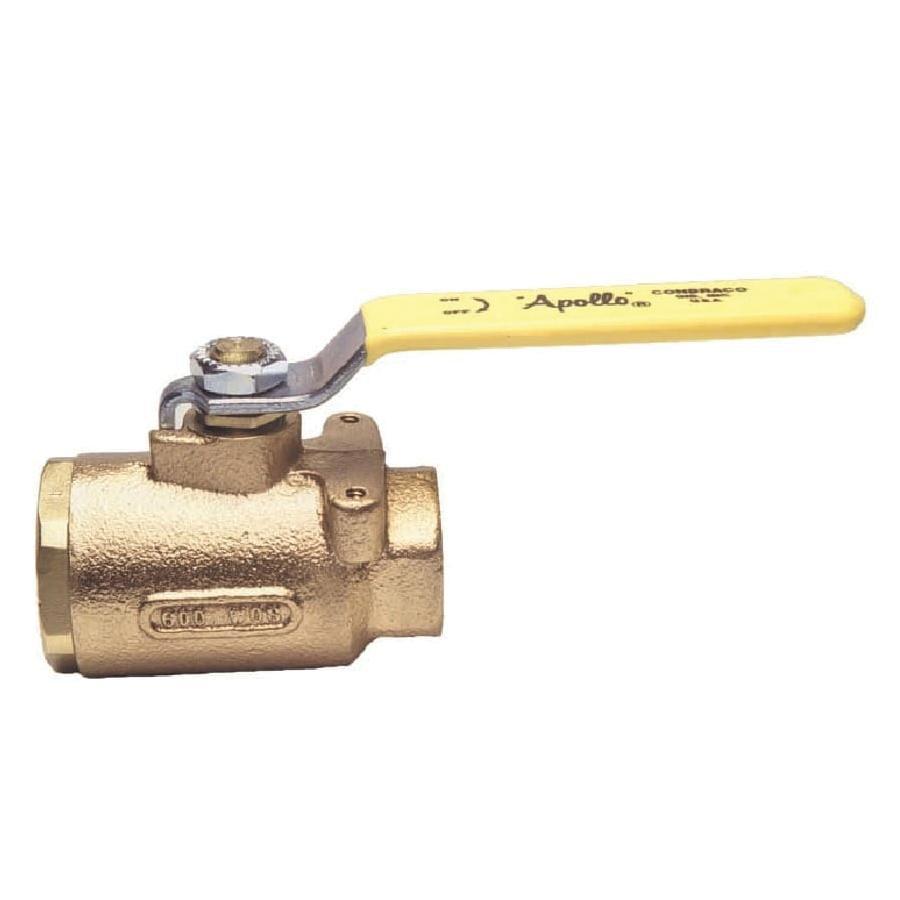

Apollo™ 7714927 77-140 2-Piece Ball Valve, 2-1/2 in Nominal, FNPT End Style, Bronze Body, Full Port, PTFE/RPTFE Softgoods, Domestic
CBPN:44174
UPC:670750706851
MPN:77-149-27
Price:
$1560.23 / EA
Prop 65:
DESCRIPTION
Apollo™ 7714927, Ball Valve, 2-Piece, Series: 77-140, 2-1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 500 deg F, Full Port, Latch-Lock Lever Actuator, 316 Stainless Steel Ball, 6-1/2 in Inlet to Outlet Length, 4.12 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, PTFE/RPTFE Softgoods, Domestic
Designed for easy actuator mounting or panel mounting where highest Cv values are desired. RPTFE seats and stuffing box ring. Also available with 250 lb steam trim option.
Apollo™ 7714927 77-140 2-Piece Ball Valve, 2-1/2 in Nominal, FNPT End Style, Bronze Body, Full Port, PTFE/RPTFE Softgoods, Domestic
CBPN:44174
MPN:77-149-27
UPC:670750706851
Price:
$1560.23 / EA
Prop 65:
DESCRIPTION
Apollo™ 7714927, Ball Valve, 2-Piece, Series: 77-140, 2-1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 500 deg F, Full Port, Latch-Lock Lever Actuator, 316 Stainless Steel Ball, 6-1/2 in Inlet to Outlet Length, 4.12 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, PTFE/RPTFE Softgoods, Domestic
Designed for easy actuator mounting or panel mounting where highest Cv values are desired. RPTFE seats and stuffing box ring. Also available with 250 lb steam trim option.
Specifications
Brand: Apollo™
Weight: 17.25 lbs
Nominal Size: 2-1/2 in
End Style: FNPT
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Full
Softgoods Material: PTFE/RPTFE
Actuator Type: Latch-Lock Lever
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 6-1/2 in
Manufacturer Name: Apollo Conbraco
Series: 77-140
Temperature Rating: 500 deg F
Top to Inlet Center: 4.12 in
Trim Material: 316 Stainless Steel Stem and RPTFE Seat
Type: 2-Piece
Includes: Adjustable Packing Gland
Application: Designed for easy actuator mounting or panel mounting where highest Cv values are desired
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584-C84400 Body/B16 Stem/B16 or B283-C37700 Ball | ARRA Compliant | CRN OC10908.5C | Federal Specifications WW-V-35C Type II Composition BZ Style 3 | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- 27 - Stainless steel latch-lock lever and nut
- Blow-out proof stem
- Hardened ball for wear resistance
- 100% factory tested
- Mounting pad for easy actuator mounting
- 150 psi working steam pressure
- Vacuum service to 29 in Hg
- Heavy duty ball valve
