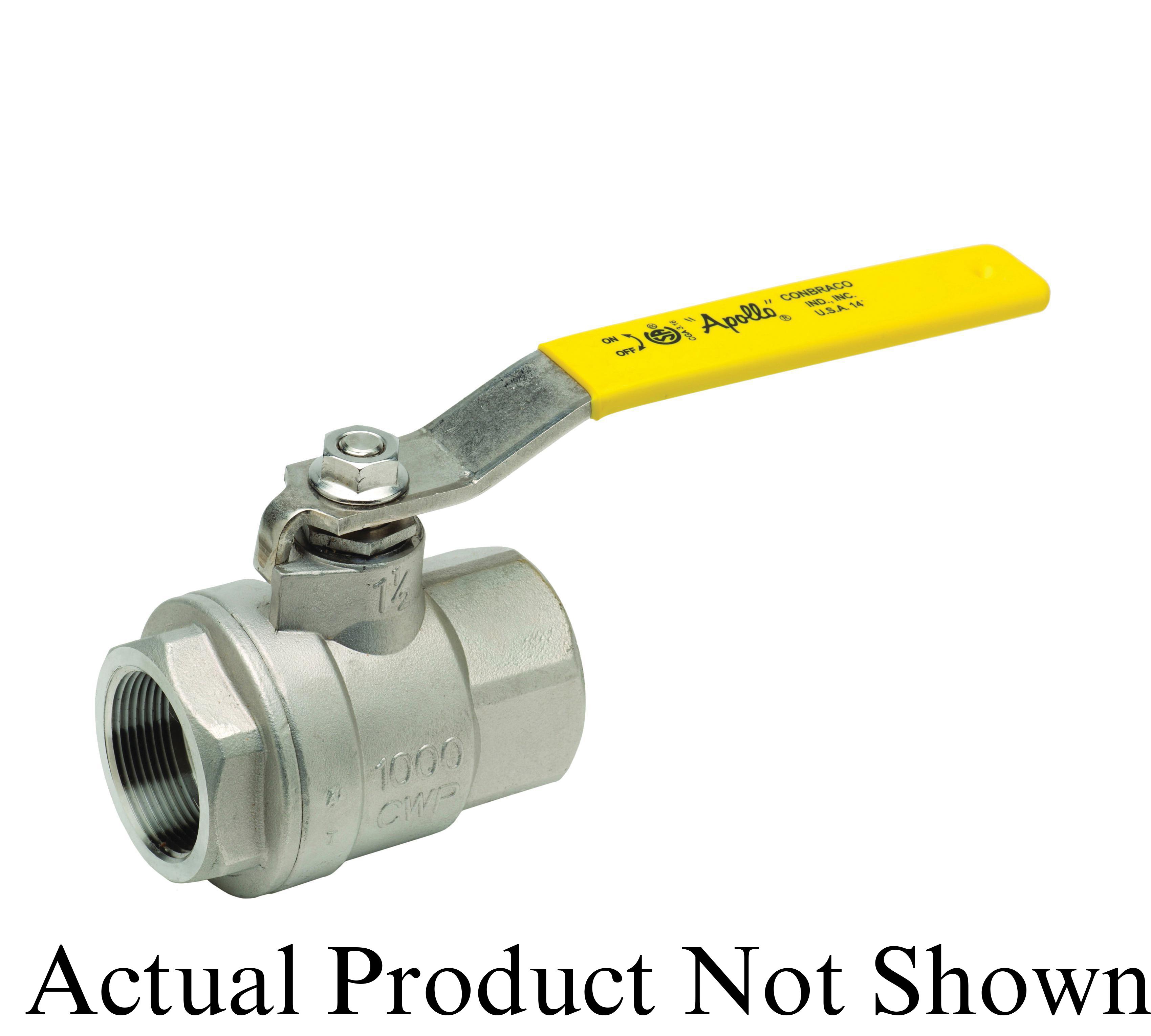

Apollo™ 76F10001A 76F-100-A 2-Piece Standard Configuration Ball Valve, 3 in Nominal, FNPT End Style, Full Port, MPTFE/RPTFE Softgoods, Domestic
CBPN:179378
UPC:670750829833
MPN:76F-100-01-A
Apollo™ 76F-100-01-A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Apollo™ 76F10001A, Standard Configuration Ball Valve, 2-Piece, Series: 76F-100-A, 3 in Nominal, FNPT End Style, 1000 psi CWP Pressure, Full Port, Lever Operated Actuator, Stainless Steel Ball, 7.4 in Inlet to Outlet Length, 5.23 in Top to Inlet Center, 316 Stainless Steel/RPTFE Trim, MPTFE/RPTFE Softgoods, Domestic
Apollo™ 76F10001A 76F-100-A 2-Piece Standard Configuration Ball Valve, 3 in Nominal, FNPT End Style, Full Port, MPTFE/RPTFE Softgoods, Domestic
CBPN:179378
MPN:76F-100-01-A
UPC:670750829833
Apollo™ 76F-100-01-A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Apollo™ 76F10001A, Standard Configuration Ball Valve, 2-Piece, Series: 76F-100-A, 3 in Nominal, FNPT End Style, 1000 psi CWP Pressure, Full Port, Lever Operated Actuator, Stainless Steel Ball, 7.4 in Inlet to Outlet Length, 5.23 in Top to Inlet Center, 316 Stainless Steel/RPTFE Trim, MPTFE/RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 22.39 lbs
Nominal Size: 3 in
End Style: FNPT
Pressure Rating: 1000 psi CWP
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: MPTFE/RPTFE
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Inlet to Outlet Length: 7.4 in
Manufacturer Name: Apollo Conbraco
Series: 76F-100-A
Top to Inlet Center: 5.23 in
Trim Material: 316 Stainless Steel/RPTFE
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A351 CF8M Body/Ball | ASTM A276 316 Stem/Gland | MSS SP-110 | NACE MR0175/MR0103 | PROP65: Cancer and Reproductive Harm
Item Features
- 01 - Standard Configuration
- Investment cast components
- Reinforced seat
- Blow-out proof stem design
- Vacuum service to 29 in Hg
- 150 psig saturated steam
- Lead-free - the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Cold non-shock body rating
