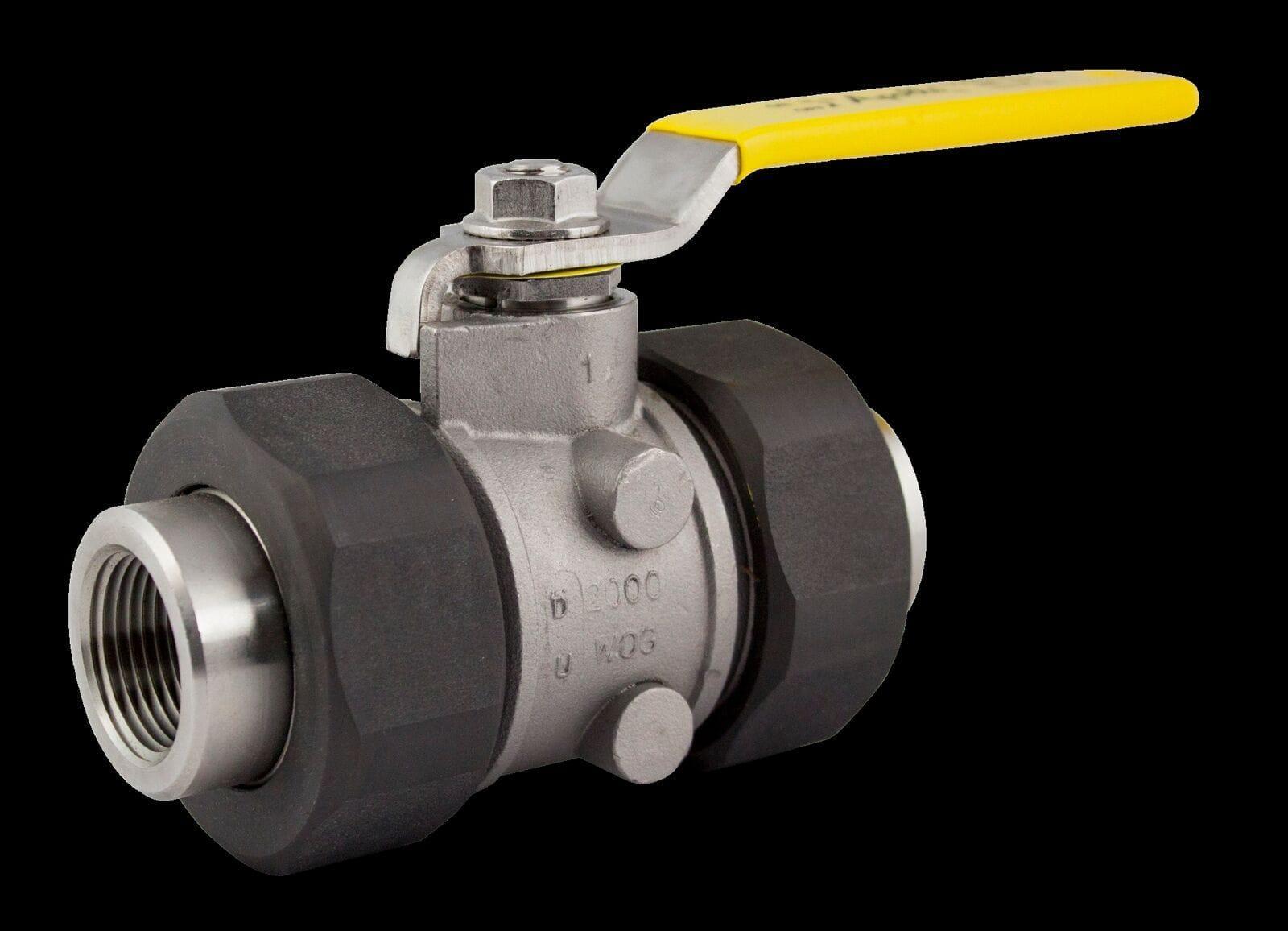

Apollo™ 7630327 76-300 2-Piece Double Union Ball Valve, 1/2 in Nominal, Double Union x FNPT End Style, Stainless Steel Body, Standard Port, RPTFE Softgoods, Domestic
CBPN:280470
UPC:670750946783
MPN:7630327
Price:
$605.05 / EA
Prop 65:
DESCRIPTION
Apollo™ 7630327, Double Union Ball Valve, 2-Piece, Series: 76-300, 1/2 in Nominal, Double Union x FNPT End Style, 2000 psi CWP Pressure, Standard Port, Latch-Lock Lever Actuator, 316 Stainless Steel Ball, 4.33 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, RPTFE Softgoods, Domestic
Apollo™ 7630327 76-300 2-Piece Double Union Ball Valve, 1/2 in Nominal, Double Union x FNPT End Style, Stainless Steel Body, Standard Port, RPTFE Softgoods, Domestic
CBPN:280470
MPN:7630327
UPC:670750946783
Price:
$605.05 / EA
Prop 65:
DESCRIPTION
Apollo™ 7630327, Double Union Ball Valve, 2-Piece, Series: 76-300, 1/2 in Nominal, Double Union x FNPT End Style, 2000 psi CWP Pressure, Standard Port, Latch-Lock Lever Actuator, 316 Stainless Steel Ball, 4.33 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 2.88 lbs
Nominal Size: 1/2 in
End Style: Double Union x FNPT
Pressure Rating: 2000 psi CWP
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: RPTFE
Actuator Type: Latch-Lock Lever
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4.33 in
Manufacturer Name: Aalberts Integrated Piping Systems
Series: 76-300
Top to Inlet Center: 2.12 in
Trim Material: 316 Stainless Steel/RPTFE
Type: 2-Piece
Includes: Adjustable Packing Gland, Stainless Steel Latch-Lock Lever, Nut
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A276 316 Ball/Retainer/Gland Nut/Stem | ASTM A351 CF8M Body | ASTM A276 316 Tailpiece | ASTM A08-CS Union Nut | ASTM A276 316 Seat Holder | PROP65: Cancer and Reproductive Harm
Item Features
- Heavy duty quarter-turn handles
- Blow-out proof stem design
- Vacuum service to 29 in Hg
- 150 psi saturated steam
- Cold non-shock body rating
