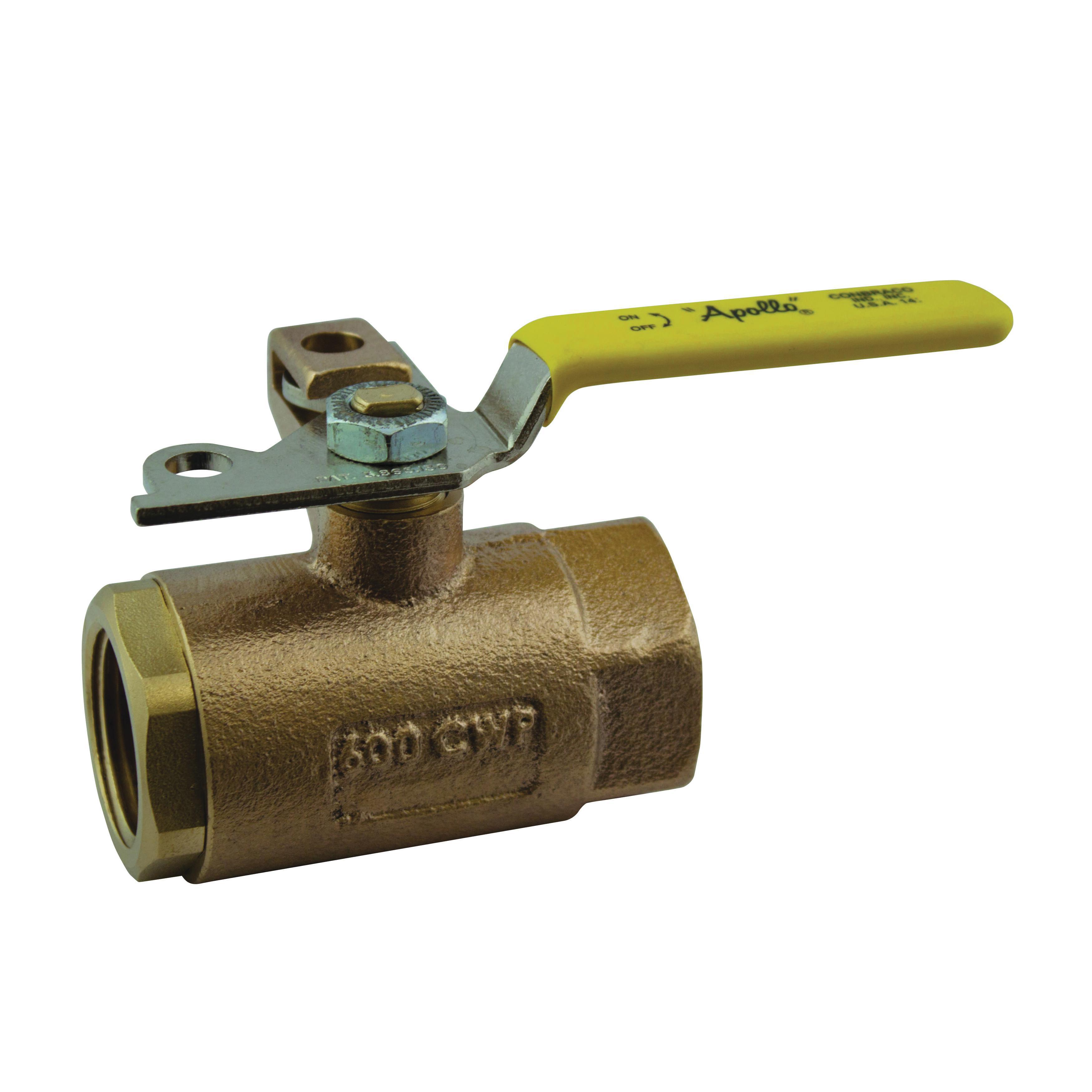

Apollo™ 7510501 75-100 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body, Standard Port, Domestic
CBPN:32518
UPC:670750691416
MPN:75-105-01
Price:
$114.70 / EA
Prop 65:
DESCRIPTION
Apollo™ 7510501, Ball Valve, 2-Piece, Series: 75-100, 1 in Nominal, FNPT End Style, 600 psi CWP Pressure, 50 to 200 deg F, Standard Port, Media: Gas/Water, 0.87 in Orifice, Lever Operated Actuator, 3.37 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
This Apollo™ ball valve meets OSHA standards and provides for easy, safe maintenance of pneumatic tools. Valve can be padlocked in the open or closed position with the same hardware.
Apollo™ 7510501 75-100 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body, Standard Port, Domestic
CBPN:32518
MPN:75-105-01
UPC:670750691416
Price:
$114.70 / EA
Prop 65:
DESCRIPTION
Apollo™ 7510501, Ball Valve, 2-Piece, Series: 75-100, 1 in Nominal, FNPT End Style, 600 psi CWP Pressure, 50 to 200 deg F, Standard Port, Media: Gas/Water, 0.87 in Orifice, Lever Operated Actuator, 3.37 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
This Apollo™ ball valve meets OSHA standards and provides for easy, safe maintenance of pneumatic tools. Valve can be padlocked in the open or closed position with the same hardware.
Specifications
Brand: Apollo™
Weight: 1.83 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Standard
Actuator Type: Lever Operated
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 3.37 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 0.87 in
Series: 75-100
Temperature Rating: 50 to 200 deg F
Top to Inlet Center: 2-1/4 in
Trim Material: Brass Stem and RPTFE Seat
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584-C84400 Body | ASTM B16 Ball/Stem | CRN OC10908.5C | MSS SP-110 | NACE MR0175/MR0103 | NSF/ANSI 61 | NSF 372 | PROP65: Cancer and Reproductive Harm
Item Features
- Reinforced seats
- Blow-out proof stem
- May be padlocked in open or closed position with no change of hardware
- 150 psig saturated steam
- Vacuum service to 29 in Hg
- Cold non-shock
- Hardened ball for wear resistance
