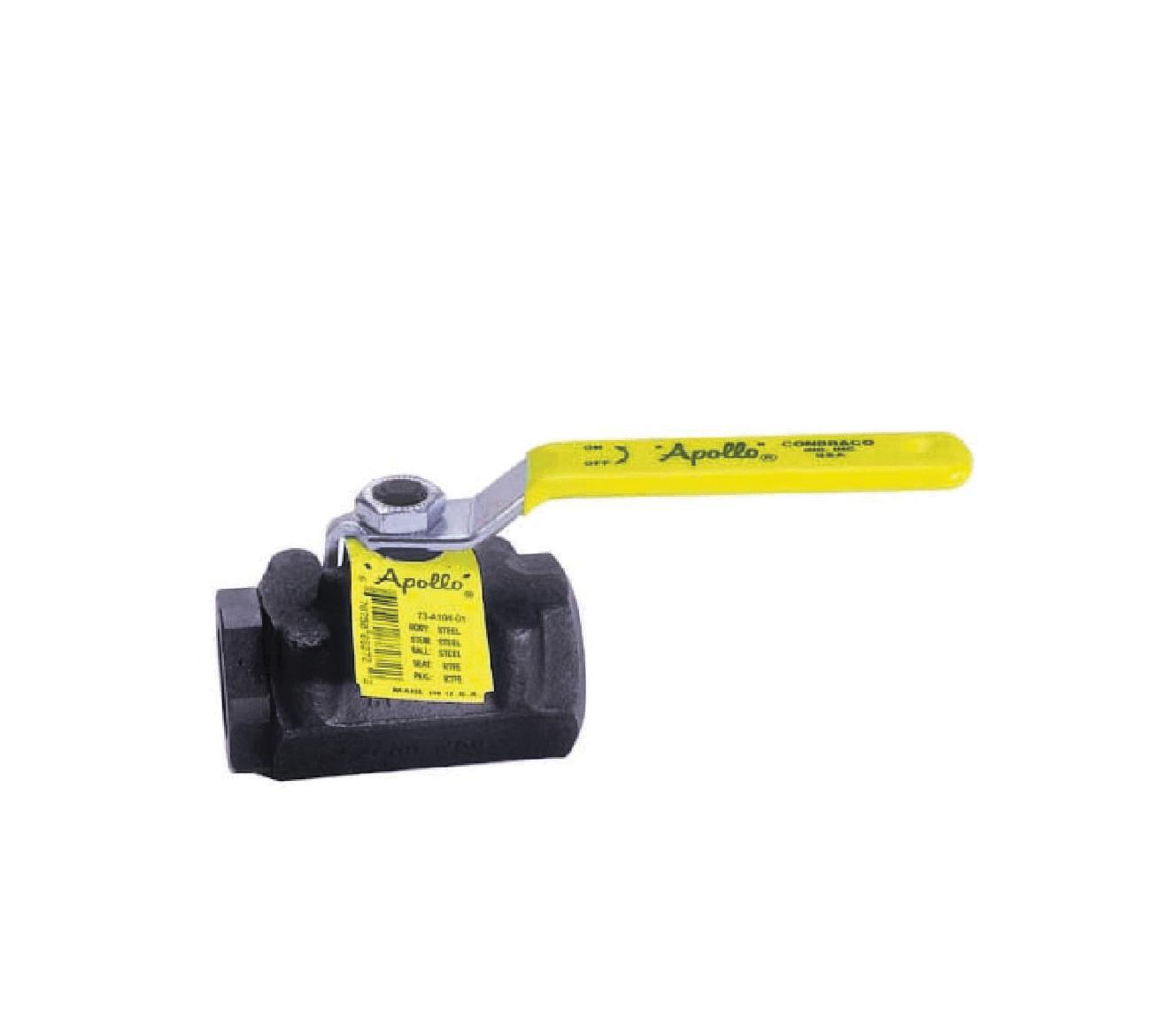

Apollo™ 73A1082427 73A-100 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Forged Carbon Steel Body, Standard Port, Graphite/MPTFE/RPTFE Softgoods, Domestic
CBPN:290288
UPC:670750581519
MPN:73A1082427
Price:
$308.10 / EA
Prop 65:
DESCRIPTION
Apollo™, 73A1082427, Ball Valve, 2-Piece, Series: 73A-100, 2 in Nominal, FNPT End Style, 1500 psi CWP Pressure, Standard Port, Media: Gas/Water, 1-1/2 in Orifice, Latch-Lock Lever Actuator, Chrome Plated Carbon Steel Ball, 4.32 in Inlet to Outlet Length, 3.12 in Top to Inlet Center, MPTFE/RPTFE Softgoods, Domestic
Apollo™ 73A1082427 73A-100 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Forged Carbon Steel Body, Standard Port, Graphite/MPTFE/RPTFE Softgoods, Domestic
CBPN:290288
MPN:73A1082427
UPC:670750581519
Price:
$308.10 / EA
Prop 65:
DESCRIPTION
Apollo™, 73A1082427, Ball Valve, 2-Piece, Series: 73A-100, 2 in Nominal, FNPT End Style, 1500 psi CWP Pressure, Standard Port, Media: Gas/Water, 1-1/2 in Orifice, Latch-Lock Lever Actuator, Chrome Plated Carbon Steel Ball, 4.32 in Inlet to Outlet Length, 3.12 in Top to Inlet Center, MPTFE/RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 16.06 lbs
Nominal Size: 2 in
End Style: FNPT
Pressure Rating: 1500 psi CWP
Body Material: Carbon Steel
Port Type: Standard
Softgoods Material: Graphite/MPTFE/PTFE
Actuator Type: Latch-Lock Lever
Ball Material: Chrome Plated Carbon Steel
Inlet to Outlet Length: 4.32 in
Manufacturer Name: Aalberts Integrated Piping Systems
Media: Gas/Water
Orifice Size: 1-1/2 in
Series: 73A-100
Top to Inlet Center: 3.12 in
Trim Material: Carbon Steel/RPTFE
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: AAR File No. E999032 | API 607 | ASTM A105 Body | ASTM A08 Ball/Stem | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- Raised handle stops
- Blow-out proof stem design
- Zinc phosphate corrosion protection
- Vacuum service to 29 in Hg
- 150 psig saturated steam
- RPTFE seal, graphite packing and MPTFE stem packing
- 27 - stainless steel latch-lock lever and nut
