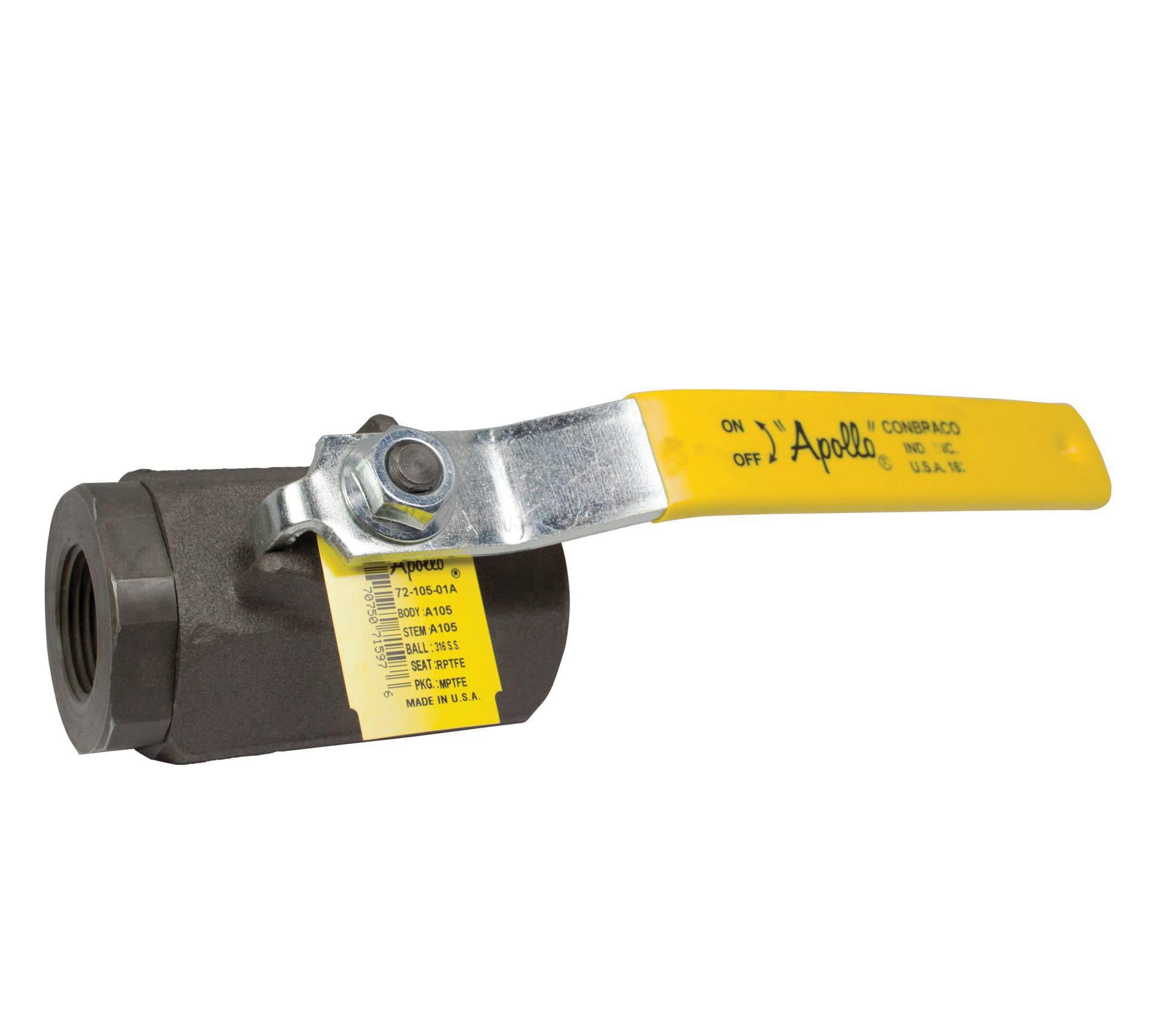

Apollo™ 72-145-01A 72-140-A 2-Piece High Pressure Ball Valve, 1 in Nominal, FNPT End Style, Carbon Steel Body
CBPN:61379
UPC:670750738678
MPN:7214501A
Apollo™ 7214501A has been discontinued by the manufacturer.
REPLACEMENT
A replacement is available for this item, however, it is not for sale on our website. Please contact us for more information or a quote.
Prop 65:
DESCRIPTION
Apollo™ 7214501A, High Pressure Ball Valve, 2-Piece, Series: 72-140-A, 1 in Nominal, FNPT End Style, 3000 psi CWP Pressure, Full Port, Lever Handle Actuator, 3.98 in Inlet to Outlet Length, 2.94 in Top to Inlet Center, Carbon Steel/RPTFE Trim, MPTFE/RPTFE Softgoods, Domestic
Apollo™ 72-145-01A 72-140-A 2-Piece High Pressure Ball Valve, 1 in Nominal, FNPT End Style, Carbon Steel Body
CBPN:61379
MPN:7214501A
UPC:670750738678
Apollo™ 7214501A has been discontinued by the manufacturer.
REPLACEMENT
A replacement is available for this item, however, it is not for sale on our website. Please contact us for more information or a quote.
Prop 65:
DESCRIPTION
Apollo™ 7214501A, High Pressure Ball Valve, 2-Piece, Series: 72-140-A, 1 in Nominal, FNPT End Style, 3000 psi CWP Pressure, Full Port, Lever Handle Actuator, 3.98 in Inlet to Outlet Length, 2.94 in Top to Inlet Center, Carbon Steel/RPTFE Trim, MPTFE/RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 4.91 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Rating: 3000 psi CWP
Body Material: Carbon Steel
Port Type: Full
Softgoods Material: MPTFE/RPTFE
Actuator Type: Lever Handle
Ball Material: Stainless Steel
Inlet to Outlet Length: 3.98 in
Manufacturer Name: Apollo Conbraco
Series: 72-140-A
Top to Inlet Center: 2.94 in
Trim Material: Carbon Steel/RPTFE
Type: 2-Piece
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A276/A108/A105 | MR0103 (2003) | MSS SP-110 | NACE MR0175 (2000) | PROP65: Cancer and Reproductive Harm
Item Features
- Forged body design
- Reinforced seat
- Fire safe by design
- Zinc phosphate corrosion protection
- Adjustable packing gland
- Blow-out proof stem design
- Heavy duty lever
- Cold non-shock body rating
- Vacuum service to 29 in Hg
- RPTFE seat and carbon steel stem
