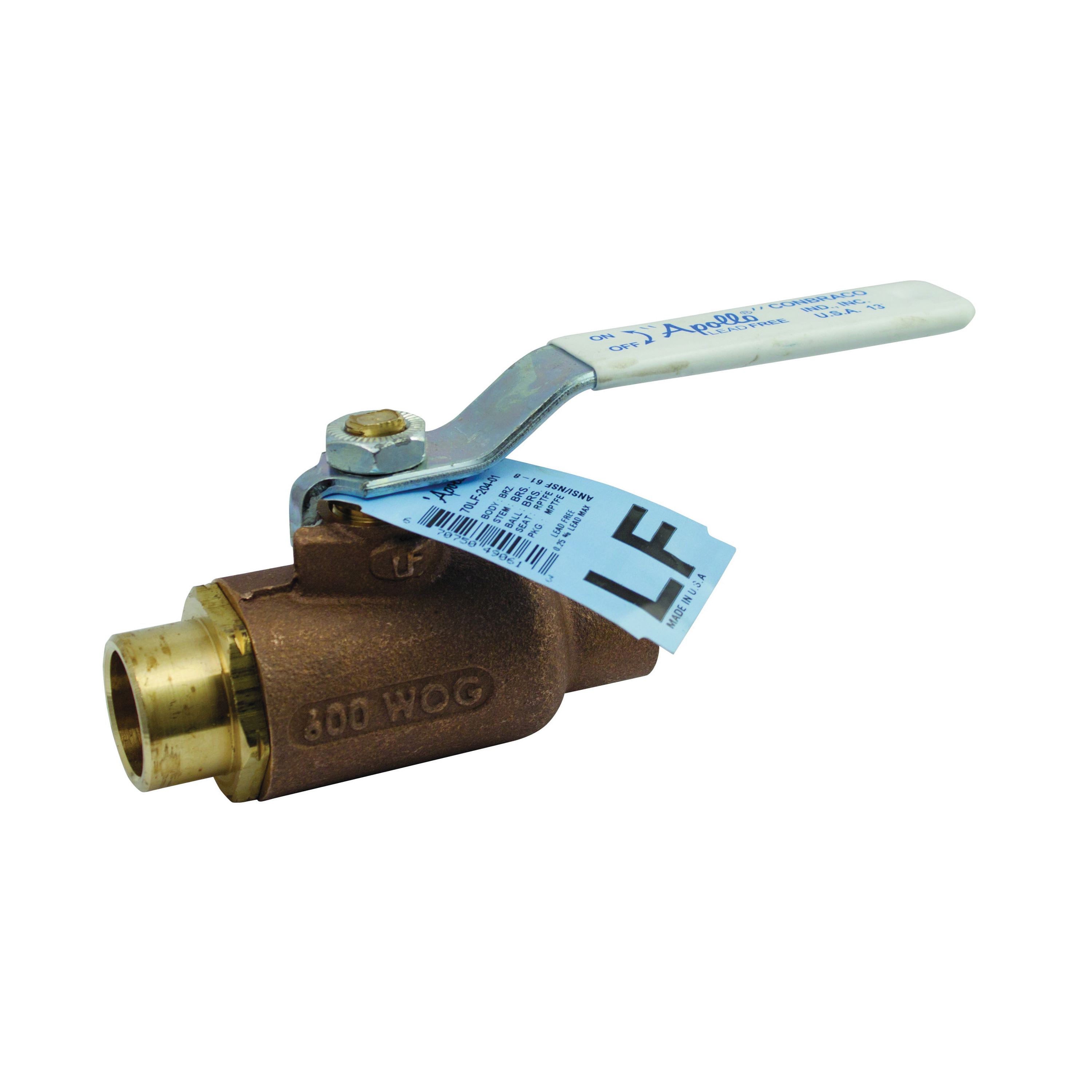

Apollo™ 70LF20927 70LF-200 2-Piece Ball Valve, 2-1/2 in Nominal, Solder End Style, Lead Free Bronze Body, Standard Port, Domestic
CBPN:247678
UPC:670750197260
MPN:70LF-209-27
Price:
$1106.06 / EA
Prop 65:
DESCRIPTION
Apollo™ 70LF20927, Ball Valve, 2-Piece, Series: 70LF-200, 2-1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 450 deg F, Standard Port, Latch-Lock Lever Actuator, 7.51 in Inlet to Outlet Length, 3.72 in Top to Inlet Center, Lead Free Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 70LF series has the same rugged features as the industry standard 70 series valves with the added advantage of lead free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo™ performance with a wide range of popular options.
Apollo™ 70LF20927 70LF-200 2-Piece Ball Valve, 2-1/2 in Nominal, Solder End Style, Lead Free Bronze Body, Standard Port, Domestic
CBPN:247678
MPN:70LF-209-27
UPC:670750197260
Price:
$1106.06 / EA
Prop 65:
DESCRIPTION
Apollo™ 70LF20927, Ball Valve, 2-Piece, Series: 70LF-200, 2-1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 450 deg F, Standard Port, Latch-Lock Lever Actuator, 7.51 in Inlet to Outlet Length, 3.72 in Top to Inlet Center, Lead Free Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 70LF series has the same rugged features as the industry standard 70 series valves with the added advantage of lead free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo™ performance with a wide range of popular options.
Specifications
Brand: Apollo™
Weight: 13.96 lbs
Nominal Size: 2-1/2 in
End Style: Solder
Pressure Rating: 600 psi CWP
Body Material: Lead Free Bronze
Port Type: Standard
Softgoods Material: RPTFE
Actuator Type: Latch-Lock Lever
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 7.51 in
Manufacturer Name: Apollo Conbraco
Series: 70LF-200
Temperature Rating: 450 deg F
Top to Inlet Center: 3.72 in
Trim Material: Brass Stem and RPTFE Seat
Type: 2-Piece
Application: Plumbing and heating systems, including potable water
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI/NSF 61 Section 8 2008 180 deg F | ANSI 3rd Party Certified | CRN OC10908.5C | MSS SP-110 | NSF/ANSI 61-8 Annex G | NSF/ANSI 372 | UNS C89836 Body | UNS C27451 Ball/Stem | CA AB1953 | VT Act 193 | MD HB372 | LA HB471 and Federal Public Law 111-380 | PROP65: Cancer and Reproductive Harm
Item Features
- Stainless steel latch-lock lever and nut
- Easily identifiable blue Lead free hang tag
- Designed, manufactured and 100% factory tested in the USA
- Vacuum service to 29 in Hg
- White lever grip
- 150 psig saturated steam
- Lead free - the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
