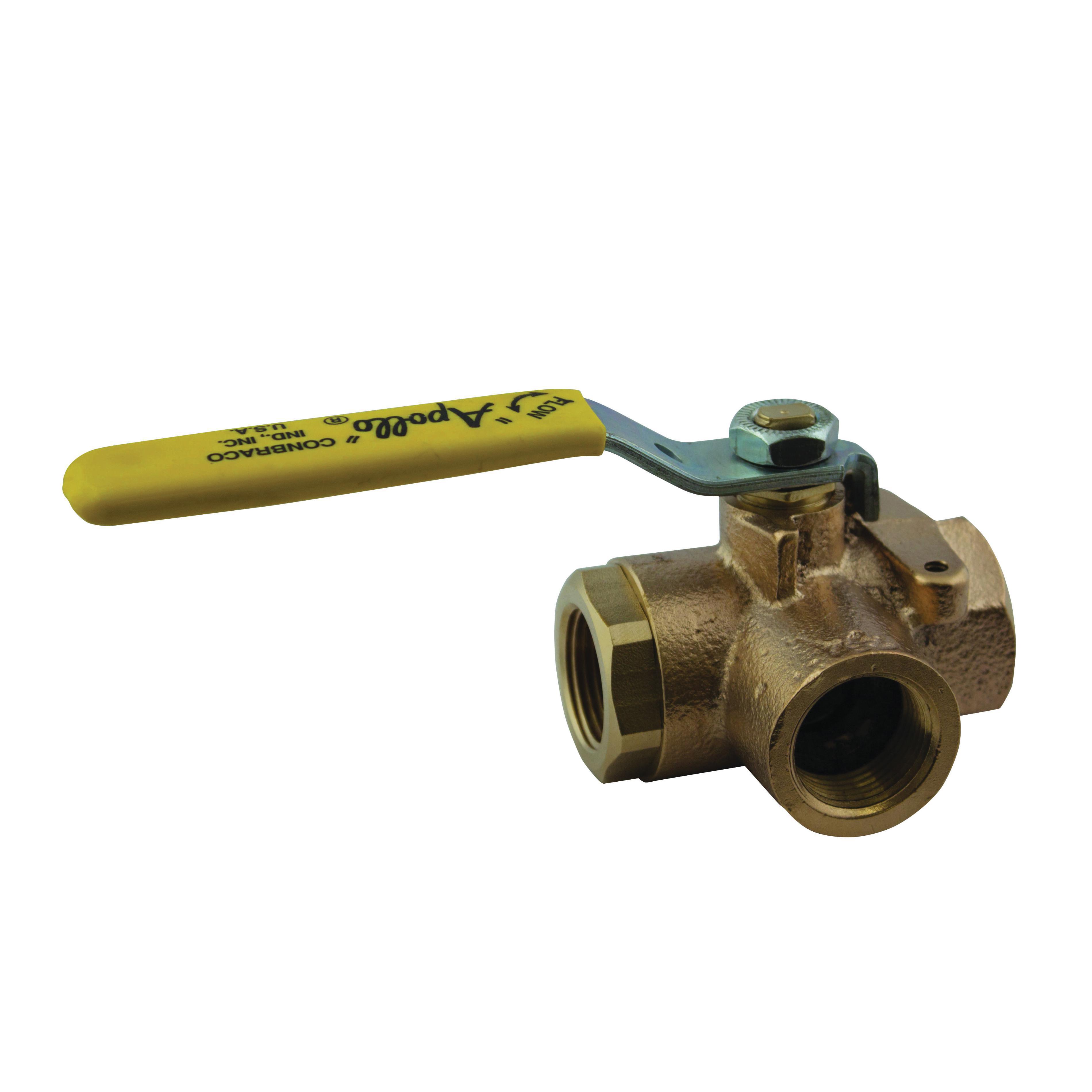

Apollo™ 7064601 70-640 2-Piece Diversion Ball Valve, 1-1/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, Domestic
CBPN:187480
UPC:670750674556
MPN:70-646-01
Price:
$277.24 / EA
Prop 65:
DESCRIPTION
Apollo™ 7064601, Diversion Ball Valve, 2-Piece, Series: 70-640, 1-1/4 in Nominal, FNPT End Style, 400 psi CWP Pressure, 500 deg F, Standard Port, Media: Gas/Water, 1 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 3.98 in Inlet to Outlet Length, 2.69 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 70-600 series standard port 3-way diversion valve is ideal for making tank selection and fluid transfers simpler. Manufactured with proven ASTM Materials in the US.
Apollo™ 7064601 70-640 2-Piece Diversion Ball Valve, 1-1/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, Domestic
CBPN:187480
MPN:70-646-01
UPC:670750674556
Price:
$277.24 / EA
Prop 65:
DESCRIPTION
Apollo™ 7064601, Diversion Ball Valve, 2-Piece, Series: 70-640, 1-1/4 in Nominal, FNPT End Style, 400 psi CWP Pressure, 500 deg F, Standard Port, Media: Gas/Water, 1 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 3.98 in Inlet to Outlet Length, 2.69 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 70-600 series standard port 3-way diversion valve is ideal for making tank selection and fluid transfers simpler. Manufactured with proven ASTM Materials in the US.
Specifications
Brand: Apollo™
Weight: 3.85 lbs
Nominal Size: 1-1/4 in
End Style: FNPT
Pressure Rating: 400 psi CWP
Body Material: Bronze
Port Type: Standard
Softgoods Material: RPTFE/MPTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 3.98 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 1 in
Series: 70-640
Temperature Rating: 500 deg F
Top to Inlet Center: 2.69 in
Trim Material: Brass Stem and RPTFE Seat
Type: 2-Piece
Includes: Adjustable Packing Gland
Application: Making Tank Selection and Fluid Transfers
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584-C84400 Body | CRN OC10908.5C | Federal Specifications WW-V-35C | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- Blow-out proof stem
- Drilled and tapped mounting pad
