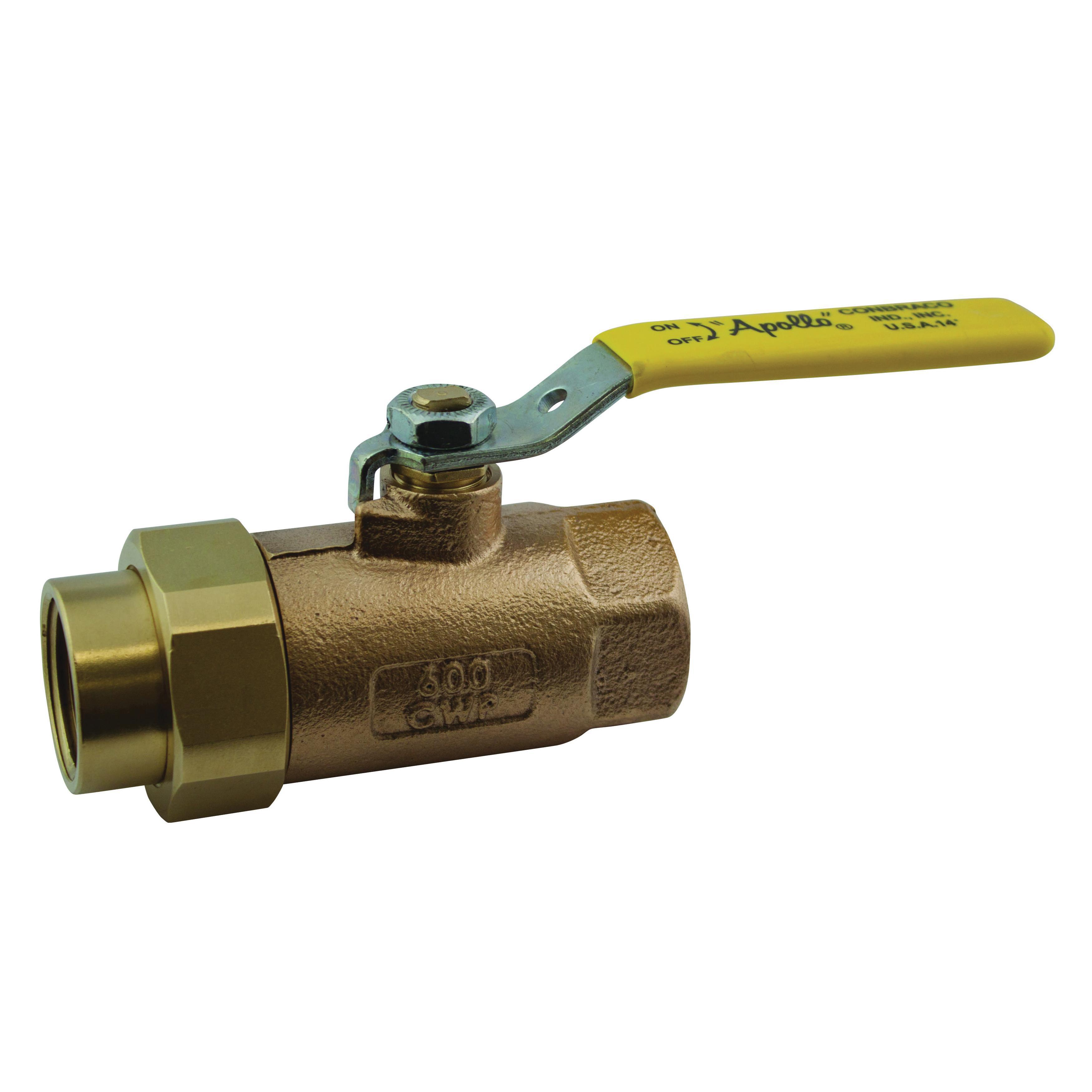

Apollo™ 70-348-01 70-340 Single Union Ball Valve, 2 in Nominal, FNPT x Union End End Style, Bronze Body, Standard Port, PTFE/MPTFE Softgoods, Domestic
CBPN:245880
UPC:670750671647
MPN:70-348-01
Price:
$556.29 / EA
Prop 65:
DESCRIPTION
Apollo™ Single Union Ball Valve, Series: 70-340, 2 in Nominal, FNPT x Union End, 600 psig CWP, 500 deg F, Standard Port, Lever Operated Actuator, 316 Stainless Steel Ball, 5.59 in Inlet to Outlet Length, 3.24 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, PTFE/MPTFE, Domestic
The Apollo™ 70-300 Series is a standard port ball valve that combines pipe union with ball valve shut-off.
Apollo™ 70-348-01 70-340 Single Union Ball Valve, 2 in Nominal, FNPT x Union End End Style, Bronze Body, Standard Port, PTFE/MPTFE Softgoods, Domestic
CBPN:245880
MPN:70-348-01
UPC:670750671647
Price:
$556.29 / EA
Prop 65:
DESCRIPTION
Apollo™ Single Union Ball Valve, Series: 70-340, 2 in Nominal, FNPT x Union End, 600 psig CWP, 500 deg F, Standard Port, Lever Operated Actuator, 316 Stainless Steel Ball, 5.59 in Inlet to Outlet Length, 3.24 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, PTFE/MPTFE, Domestic
The Apollo™ 70-300 Series is a standard port ball valve that combines pipe union with ball valve shut-off.
Specifications
Brand: Apollo™
Weight: 8.37 lbs
Nominal Size: 2 in
End Style: FNPT x Union End
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Standard
Softgoods Material: PTFE/MPTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 5.59 in
Manufacturer Name: Apollo Conbraco
Series: 70-340
Temperature Rating: 500 deg F
Top to Inlet Center: 3.24 in
Trim Material: 316 Stainless Steel Stem and RPTFE Seat
Type: Union End
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584-C84400 Body | CRN OC10908.5C | Federal Specifications WW-V-35C | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- 01 - Standard Configuration
- Blow-out proof stem
- Fluorocarbon O-Ring sealed single union requires only light torque to seal
- Vacuum service to 29 in Hg
- Cold non-shock
- 150 psig saturated steam
