Apollo 70-200-HC Series Ball Valve

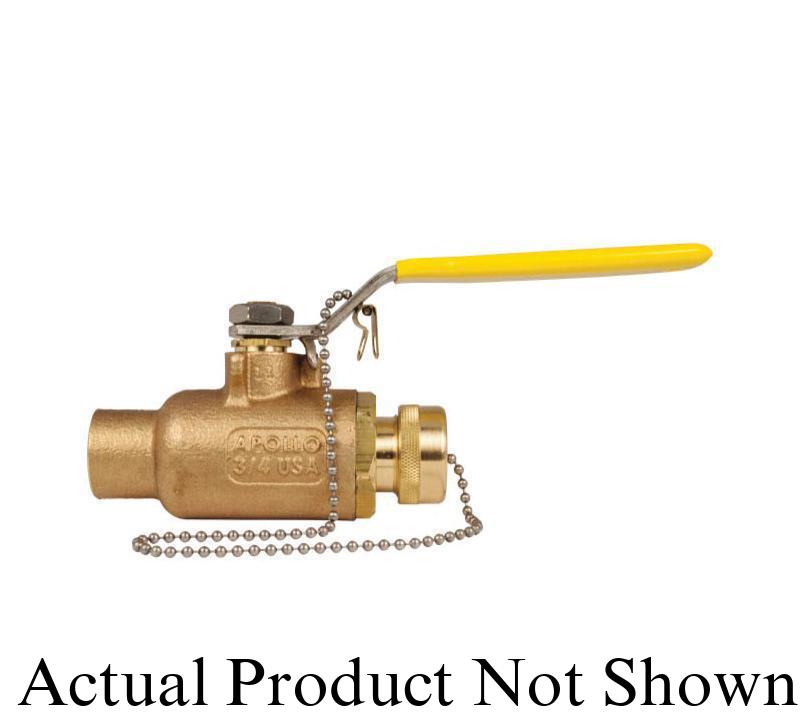

Apollo™ 70243HC 70-200-HC 2-Piece Ball Valve, 1/2 in Nominal, Solder End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic

CBPN:39818

UPC:670750521850

MPN:70-243-HC

Price:
$74.37 / EA
Prop 65:

DESCRIPTION

Apollo™ 70243HC, Ball Valve, 2-Piece, Series: 70-200-HC, 1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 210 deg F, Standard Port, Media: Water, Lever Handle Actuator, 316 Stainless Steel Ball, 2.87 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, PTFE/316 Stainless Steel Trim, MPTFE Softgoods, Domestic

The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-200 model is a 2-piece standard port ball valve designed to be soft soldered into lines without disassembly. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

Apollo™ 70243HC 70-200-HC 2-Piece Ball Valve, 1/2 in Nominal, Solder End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic

CBPN:39818

MPN:70-243-HC

UPC:670750521850

Price:
$74.37 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 70243HC, Ball Valve, 2-Piece, Series: 70-200-HC, 1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 210 deg F, Standard Port, Media: Water, Lever Handle Actuator, 316 Stainless Steel Ball, 2.87 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, PTFE/316 Stainless Steel Trim, MPTFE Softgoods, Domestic

The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-200 model is a 2-piece standard port ball valve designed to be soft soldered into lines without disassembly. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

Specifications

BrandApollo™
Weight0.71 lbs
Nominal Size1/2 in
End StyleSolder
Pressure Rating600 psi CWP
Body MaterialBronze
Port TypeStandard
Softgoods MaterialMPTFE
Actuator TypeLever Handle
Ball Material316 Stainless Steel
Inlet to Outlet Length2.87 in
Manufacturer NameApollo Conbraco
MediaWater
Series70-200-HC
Temperature Rating210 deg F
Top to Inlet Center1-3/4 in
Trim MaterialPTFE/316 Stainless Steel
Type2-Piece
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM B584-C84400 | MSS SP-110 | CSA B51 | CRN OC10908.5C | PROP65: Cancer and Reproductive Harm

Item Features

  • Premium materials and heavy duty construction
  • EZ-Solder bronze
  • Adjustable stem packing gland
  • Blow-out proof stem
  • 100% factory tested
  • Vacuum service to 29 in Hg
  • Steel, zinc plated with vinyl lever and grip
  • Steel, zinc plated lever nut
  • Hose cap and chain with stainless steel lever and nut
  • 150 psig saturated steam
