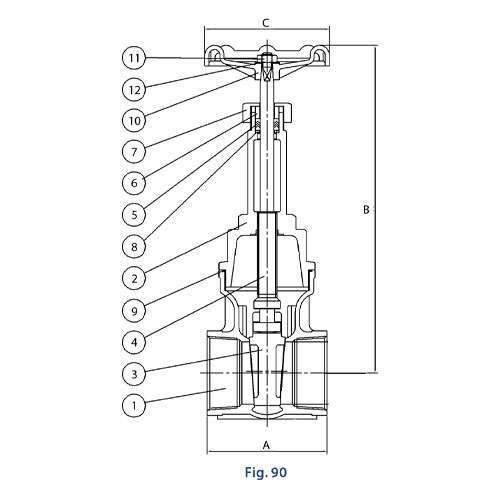

ALOYCO 90EC02014 FIG 90 Gate Valve, 1-1/2" Nominal, FNPT End Style, 200 CWP, Stainless Steel Body, Threaded Bonnet, Solid Wedge Disc
CBPN:70754
MPN:90EC02014
Price:
$1118.53 / EA
DESCRIPTION
ALOYCO Gate Valve, Figure 90, 1-1/2 in Nominal, FNPT, 200 CWP, CF8M Stainless Steel Body, Threaded Bonnet, Rising Stem, Solid Wedge Disc
**This item may be subject to a minimum order quantity.**
ALOYCO 90EC02014 FIG 90 Gate Valve, 1-1/2" Nominal, FNPT End Style, 200 CWP, Stainless Steel Body, Threaded Bonnet, Solid Wedge Disc
CBPN:70754
MPN:90EC02014
Price:
$1118.53 / EA
DESCRIPTION
ALOYCO Gate Valve, Figure 90, 1-1/2 in Nominal, FNPT, 200 CWP, CF8M Stainless Steel Body, Threaded Bonnet, Rising Stem, Solid Wedge Disc
**This item may be subject to a minimum order quantity.**
Specifications
Brand: Aloyco®
Weight: 3.4 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Class: 200 lb
Body Material: Stainless Steel
Softgoods Material: PTFE
Actuator Type: Handwheel
Hand Wheel Diameter: 3.5 in
Inlet to Outlet Length: 3.8 in
Manufacturer Name: Crane ChemPharma Energy
Top to Inlet Center: 10.6 in
Trim Material: API Trim 10 (316SS)
Domestic/Import: Import
Country of Origin: CH
Standards and Approvals: MSS SP-42, ASME B16.34
Item Features
- Rising Stem
- Solid Wedge Disc
- Threaded Bonnet
- Integral Seat
- API Trim 10 (316 SS)
