ALOYCO 40EC02014 FIG 40 Gate Valve, 1-1/2" Nominal, FNPT End Style, 200 CWP, Stainless Steel Body, Threaded Bonnet, Plug Type Disc
CBPN:265873
MPN:40EC02014
Price:
$1417.58 / EA
DESCRIPTION

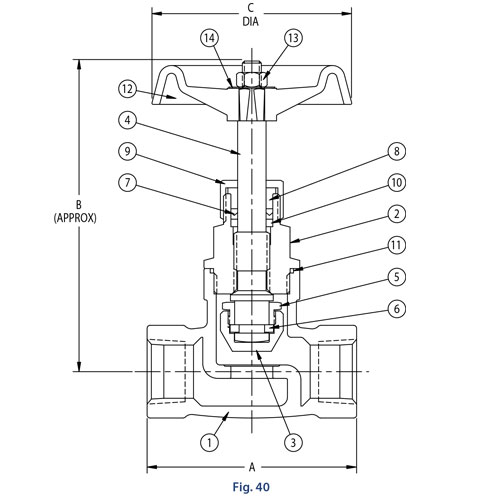

ALOYCO Globe Valve, Figure 40, 1-1/2 in Nominal, FNPT, 200 CWP, CF8M Stainless Steel Body, Threaded Bonnet, Rising Stem, Plug Type Disc
**This item may be subject to a minimum order quantity.**
ALOYCO 40EC02014 FIG 40 Gate Valve, 1-1/2" Nominal, FNPT End Style, 200 CWP, Stainless Steel Body, Threaded Bonnet, Plug Type Disc
CBPN:265873
MPN:40EC02014
Price:
$1417.58 / EA
DESCRIPTION
ALOYCO Globe Valve, Figure 40, 1-1/2 in Nominal, FNPT, 200 CWP, CF8M Stainless Steel Body, Threaded Bonnet, Rising Stem, Plug Type Disc
**This item may be subject to a minimum order quantity.**
Specifications
Brand: Aloyco®
Weight: 3.3 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Class: 200 lb
Body Material: Stainless Steel
Actuator Type: Handwheel
Hand Wheel Diameter: 3.6 in
Inlet to Outlet Length: 4.72 in
Manufacturer Name: Crane ChemPharma Energy
Softgoods Material: PTFE
Top to Inlet Center: 3.6 in
Trim Material: API Trim 10 (316SS)
Domestic/Import: Import
Country of Origin: CH
Standards and Approvals: MSS SP-42, ASME B16.34
Item Features
- Threaded Bonnet
- Inside Screw
- Rising Stem
- Integral Seat
- Plug Type Disc
- API Trim 10 (316 SS)
