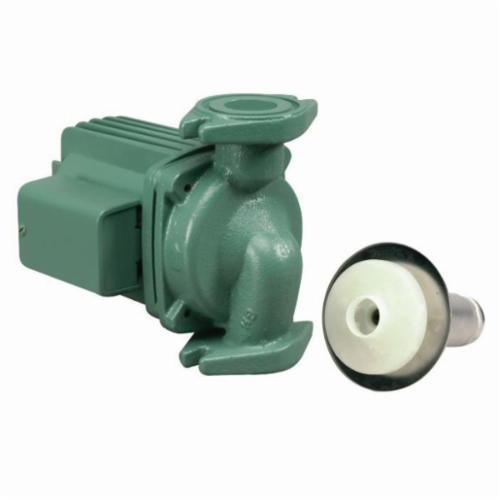

Taco® 0011-SF4 High Velocity Cartridge Circulator, Model 0011, Stainless Steel Casing, Standard Flange End Connection, 31 gpm Flow Rate 115 V, 1 Phase, Domestic
CBPN: 162259
MPN:0011-SF4
DESCRIPTION
Taco® 0011-SF4, High Velocity Cartridge Circulator Pump, Stainless Steel, Series: 00, Model: 0011, 31 gpm Flow Rate, 31 ft Maximum Head, 1/8 hp Power, 115 Volts, 1.76 Amps, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, 7-1/2 in L x 6-1/2 in H Dimensions
The high velocity series Taco® 0011 cartridge circulator is designed for high head/medium flow applications in residential or light commercial hydronic heating, radiant heating and chilled water cooling systems. The unique ACB anti-condensate baffle with ambient air flow prevents the build up of condensate on the motor windings when pumping chilled water. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0011 is ideal for installations where space is a premium. Available in Cast Iron or Stainless Steel construction.
Taco® 0011-SF4 High Velocity Cartridge Circulator, Model 0011, Stainless Steel Casing, Standard Flange End Connection, 31 gpm Flow Rate 115 V, 1 Phase, Domestic
CBPN: 162259
MPN:0011-SF4
DESCRIPTION
Taco® 0011-SF4, High Velocity Cartridge Circulator Pump, Stainless Steel, Series: 00, Model: 0011, 31 gpm Flow Rate, 31 ft Maximum Head, 1/8 hp Power, 115 Volts, 1.76 Amps, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, 7-1/2 in L x 6-1/2 in H Dimensions
The high velocity series Taco® 0011 cartridge circulator is designed for high head/medium flow applications in residential or light commercial hydronic heating, radiant heating and chilled water cooling systems. The unique ACB anti-condensate baffle with ambient air flow prevents the build up of condensate on the motor windings when pumping chilled water. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0011 is ideal for installations where space is a premium. Available in Cast Iron or Stainless Steel construction.
Specifications
Item Features
- Universal flange to flange dimensions
- Cast iron or stainless steel casing
- Aluminum stator housing
- EPDM O-ring seals and gasket
- Carbon bearing
- Ceramic shaft
- Non metallic impeller
- Direct drive-Low power consumption
- Exclusive ACB Anti-condensate baffle with ambient air flow-Protects motor windings against condensate buildup
- High velocity performance, compact design
- No mechanical seal
- Quiet, Efficient operation
- Self lubricating
- Unique replaceable cartridge design , field serviceable
- Unmatched reliability-maintenance free
