Taco 0011-CF-USK, Flanged TacoGenie Hot Water Circulator with Under Sink Kit

Taco® 0011-CF-USK, TacoGenie® Hot Water Circulator with Under Sink Kit, Stainless Steel Casing, 3/4” Shut-off Flange Connection, 7.9 gpm Flow Rate, 115 V, 1 Phase , Domestic

CBPN: 306735

MPN:0011-CF-USK

Price:
$1161.19 / EA

DESCRIPTION

Taco® 0011-CF-USK, TacoGenie® Hot Water Circulator with Under Sink Kit, Stainless Steel, Series: 00, 7.9 gpm Flow Rate, 3/4 Shut-off Flanges, 26 ft Maximum Head, 1/8 hp Power, 115 V, 1.76 Amps, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-1/2 in H x 6-5/8 in W x 7-9/16 in D Dimensions, Domestic

TacoGenie® provides instant hot water while saving up to 12,000 gallons of water per year. The small, quiet pump attaches to the hot and cold water lines in the cabinet under the most remote kitchen or bath fixture in the home. TacoGenie circulates hot water from the water heater and returns the cooled water back through the cold water line. When hot water arrives at the faucet, TacoGenie automatically shuts off to prevent excess hot water in the cold water line.

Taco® 0011-CF-USK, TacoGenie® Hot Water Circulator with Under Sink Kit, Stainless Steel Casing, 3/4” Shut-off Flange Connection, 7.9 gpm Flow Rate, 115 V, 1 Phase , Domestic

CBPN: 306735

MPN:0011-CF-USK

Price:
$1161.19 / EA

Taco Comfort Solutions Logo

DESCRIPTION

Taco® 0011-CF-USK, TacoGenie® Hot Water Circulator with Under Sink Kit, Stainless Steel, Series: 00, 7.9 gpm Flow Rate, 3/4 Shut-off Flanges, 26 ft Maximum Head, 1/8 hp Power, 115 V, 1.76 Amps, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-1/2 in H x 6-5/8 in W x 7-9/16 in D Dimensions, Domestic

TacoGenie® provides instant hot water while saving up to 12,000 gallons of water per year. The small, quiet pump attaches to the hot and cold water lines in the cabinet under the most remote kitchen or bath fixture in the home. TacoGenie circulates hot water from the water heater and returns the cooled water back through the cold water line. When hot water arrives at the faucet, TacoGenie automatically shuts off to prevent excess hot water in the cold water line.

Specifications

BrandTaco®
Weight15 lbs
Bearing TypeCarbon
Impeller TypeNon-Metallic
Temperature Rating40 to 230 deg F
Flow Rate7.9 gpm
Inlet Size3/4 in
Voltage Rating115 V
Phase1
Amperage Rating1.76 A
Dimensions6-1/2 in H x 6-5/8 in W x 7-9/16 in D
Frequency Rating60 Hz
Manufacturer NameTaco
Maximum Head26 ft
Maximum Pressure150 psi
Motor Speed3250 rpm
Mounting TypeFlange
Power Rating1/8 hp
Series00
TypeStainless Steel
Includes

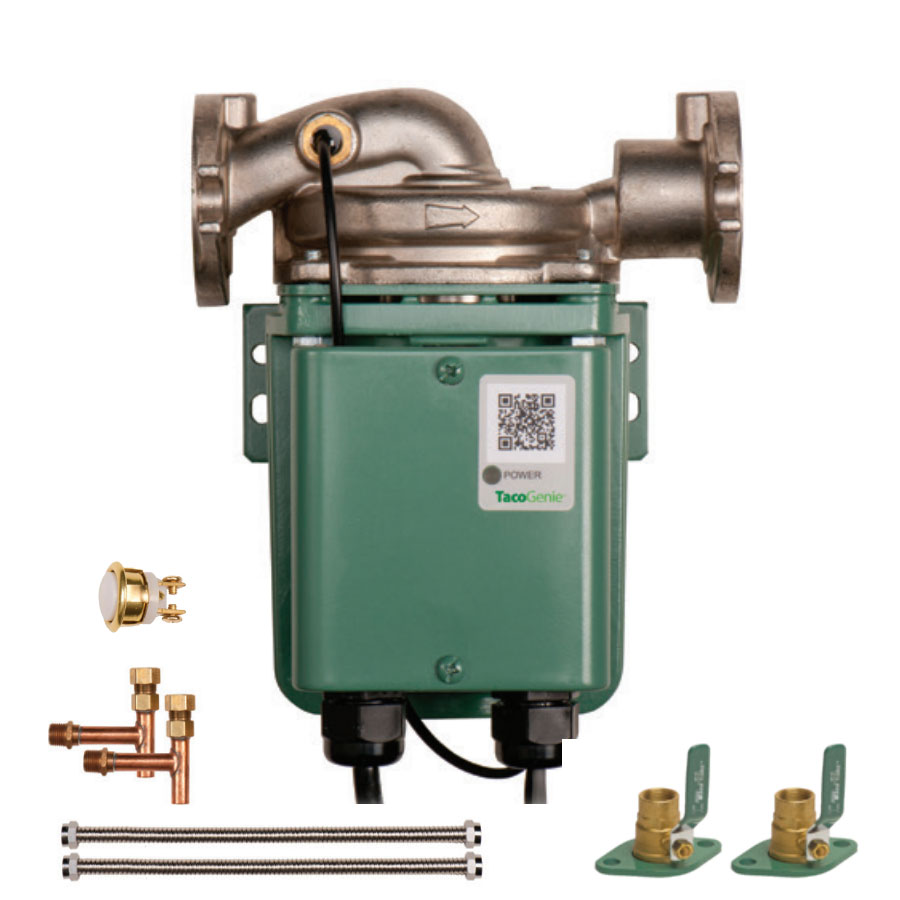

Hardwired Starter Button, (2) Copper 1/2" Plumbing Adapter Tees, (2) 1/2" Stainless Steel Flex Hoses, and (2) Shut-off Flanges

ApplicationFor Radiant Heating Systems, Domestic Water Systems, Chilled Water Cooling, Zoning with Circulators, Hydro-Air Fan Coils and Hydronic Heating System
Warranty3 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsNSF Certified

Item Features

  • Exclusive ACB Anti-condensate baffle with ambient air flow-Protects motor windings against condensate buildup
  • High velocity performance
  • compact design
  • Quiet, Efficient operation
  • Direct drive-Low power consumption
  • Unique replaceable cartridge design
  • field serviceable
  • Self lubricating
  • No mechanical seal
  • Unmatched reliability-maintenance free
  • Cast Iron or Stainless Steel construction
  • 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Connection Sizes
