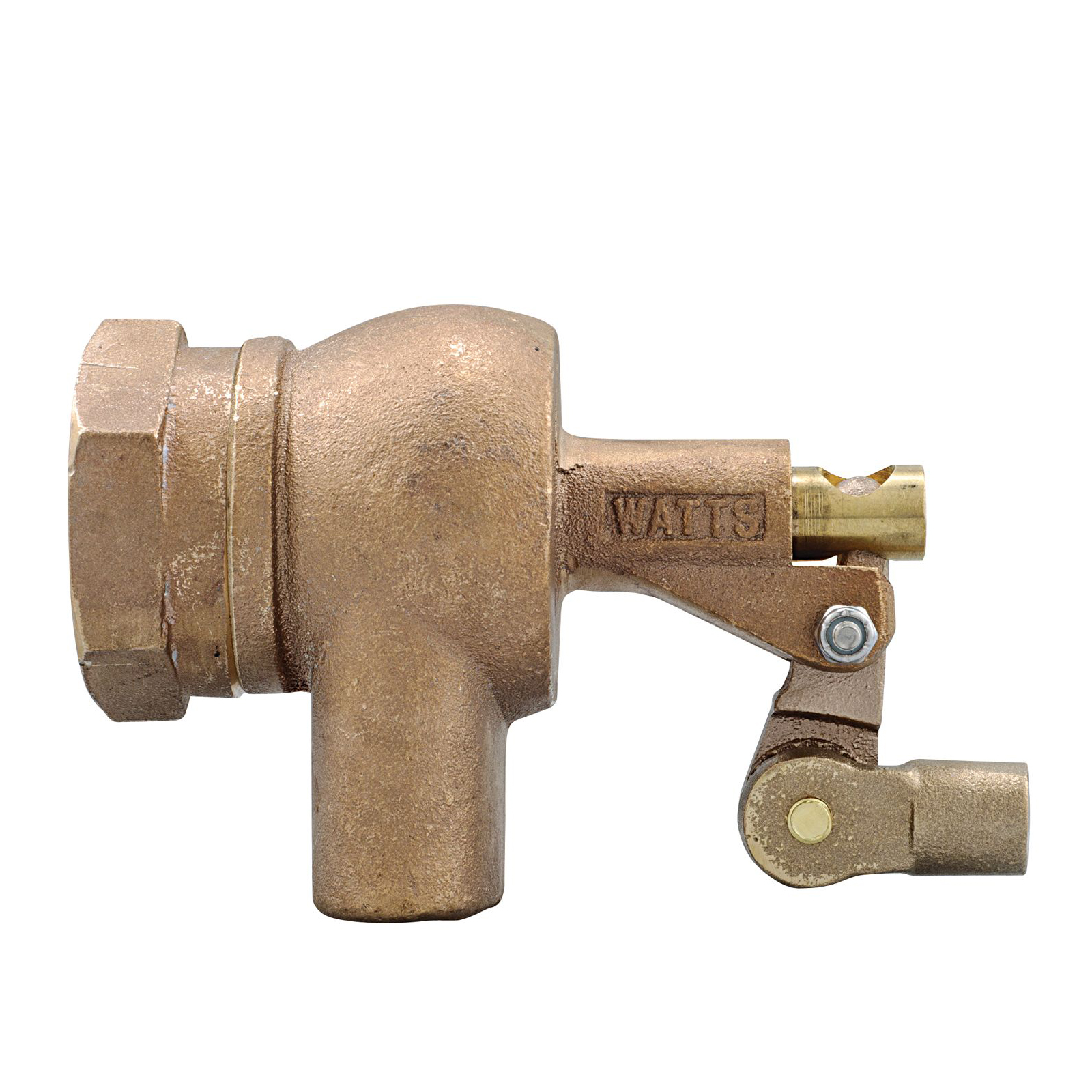

WATTS® 0780013 Standard Duty Mechanical Float Valve, 1-1/2 in Nominal, FNPT x Male Straight Pipe Threaded End Style, 233 gpm Flow Rate, 165 psi Pressure, Import
CBPN:75372
UPC:098268090963
MPN:0780013
Price:
$414.22 / EA
Prop 65:
DESCRIPTION
WATTS® Mechanical Float Valve, Standard Duty, 1-1/2 in Nominal, FNPT x Male Straight Pipe Threaded, 233 gpm, 165 psi, 3/8-16 Rod Thread, Bronze Body, Tank Wall Mount, 180 deg F, Import
Series 375, 500, 750, 1000, 1250, 1500 and 2000 heavy-duty Mechanical Float Valves are used in commercial, industrial, and agricultural applications for controlling high capacity water flow and can be tank wall-mounted. It has a bronze body construction with a machine flange on the inlet side (sizes 1 to 2 in. (25 to 50mm) have female NPT pipe threaded inlet connection), and male straight-pipe threaded for locknut on the outlet side. It has serrated arms for easy adjustment of water level, bronze long and short arms, replaceable seals, and no-jam single lever action. This series is ideal for use in air conditioning, refrigeration, and irrigation systems.
WATTS® 0780013 Standard Duty Mechanical Float Valve, 1-1/2 in Nominal, FNPT x Male Straight Pipe Threaded End Style, 233 gpm Flow Rate, 165 psi Pressure, Import
CBPN:75372
MPN:0780013
UPC:098268090963
Price:
$414.22 / EA
Prop 65:
DESCRIPTION
WATTS® Mechanical Float Valve, Standard Duty, 1-1/2 in Nominal, FNPT x Male Straight Pipe Threaded, 233 gpm, 165 psi, 3/8-16 Rod Thread, Bronze Body, Tank Wall Mount, 180 deg F, Import
Series 375, 500, 750, 1000, 1250, 1500 and 2000 heavy-duty Mechanical Float Valves are used in commercial, industrial, and agricultural applications for controlling high capacity water flow and can be tank wall-mounted. It has a bronze body construction with a machine flange on the inlet side (sizes 1 to 2 in. (25 to 50mm) have female NPT pipe threaded inlet connection), and male straight-pipe threaded for locknut on the outlet side. It has serrated arms for easy adjustment of water level, bronze long and short arms, replaceable seals, and no-jam single lever action. This series is ideal for use in air conditioning, refrigeration, and irrigation systems.
Specifications
Brand: WATTS®
Body Material: Bronze
End Style: FNPT x Male Straight Pipe Threaded
Flow Rate: 233 gpm
Mounting Type: Tank Wall
Nominal Size: 1-1/2 in
Temperature Rating: 180 deg F
Type: Standard Duty
Pressure Rating: 165 psi
Manufacturer Name: Watts Water Technologies
Rod Thread: 3/8-16
Application: Commercial, Industrial and Agricultural
Warranty: 1 year Limited
Domestic/Import: Import
Country of Origin: MX
Standards and Approvals: PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Item Features
- Pipe-threaded for pipe connections and straight-pipe threaded for locknut
- Machined flange for support against tank wall
- Serrated arms for quick easy adjustment of water level
- Replaceable seals
- Non-threaded outlet
