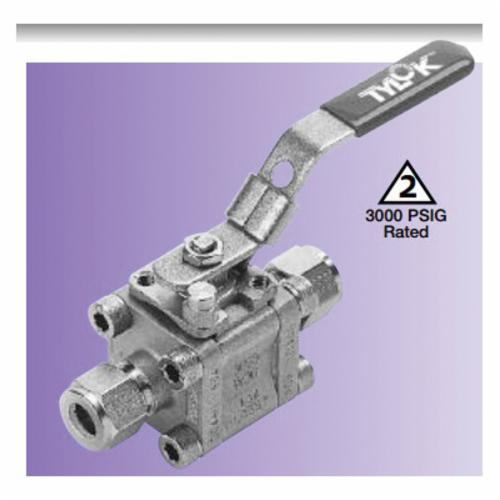

Tylok® Ty-Flo® SS-12-5TT-12-RR 3-Piece Ball Valve, 3/4 in Nominal, CBC-Lok® Tube End Style, Stainless Steel Body, RPTFE Softgoods
CBPN:146059
MPN:SS-12-5TT-12-RR
Price:
$245.80 / EA
DESCRIPTION
Tylok® Ty-Flo® Ball Valve, 3-Piece, 3/4 in Nominal, CBC-Lok® Tube End Style, 3000 psi WOG Pressure, 100 deg F, Latch-Lock Handle Actuator, 3.26 in Inlet to Outlet Length, 2.6 in Top to Inlet Center, Stainless Steel Body, RPTFE Softgoods
Ty-Flo® 3 piece ball valves are ordered as listed in this catalog by inserting the material code before the part number. Ty-Flo® 3 piece ball valves can be identified through the part number as to material, end sizes, end configuration, seat and seal type, and special options. The standard ball and stem are in stainless steel unless otherwise requested.
Tylok® Ty-Flo® SS-12-5TT-12-RR 3-Piece Ball Valve, 3/4 in Nominal, CBC-Lok® Tube End Style, Stainless Steel Body, RPTFE Softgoods
CBPN:146059
MPN:SS-12-5TT-12-RR
Price:
$245.80 / EA
DESCRIPTION
Tylok® Ty-Flo® Ball Valve, 3-Piece, 3/4 in Nominal, CBC-Lok® Tube End Style, 3000 psi WOG Pressure, 100 deg F, Latch-Lock Handle Actuator, 3.26 in Inlet to Outlet Length, 2.6 in Top to Inlet Center, Stainless Steel Body, RPTFE Softgoods
Ty-Flo® 3 piece ball valves are ordered as listed in this catalog by inserting the material code before the part number. Ty-Flo® 3 piece ball valves can be identified through the part number as to material, end sizes, end configuration, seat and seal type, and special options. The standard ball and stem are in stainless steel unless otherwise requested.
Specifications
Brand: Tylok®
Weight: 1.5lbs
Actuator Type: Latch-Lock Handle
Body Material: Stainless Steel
End Style: CBC-Lok® Tube
Nominal Size: 3/4 in
Temperature Rating: 100 deg F
Type: 3-Piece
Pressure Rating: 3000 psi WOG
Softgoods Material: RPTFE
Inlet to Outlet Length: 3.26 in
Manufacturer Name: Tylok International
Top to Inlet Center: 2.6 in
Warranty: 1 year Limited
Country of Origin: US
Item Features
- Instrumentation tube end
- Bi-directional flow
- RPTFE seal
